Same model may have multiple batches, images only for reference.

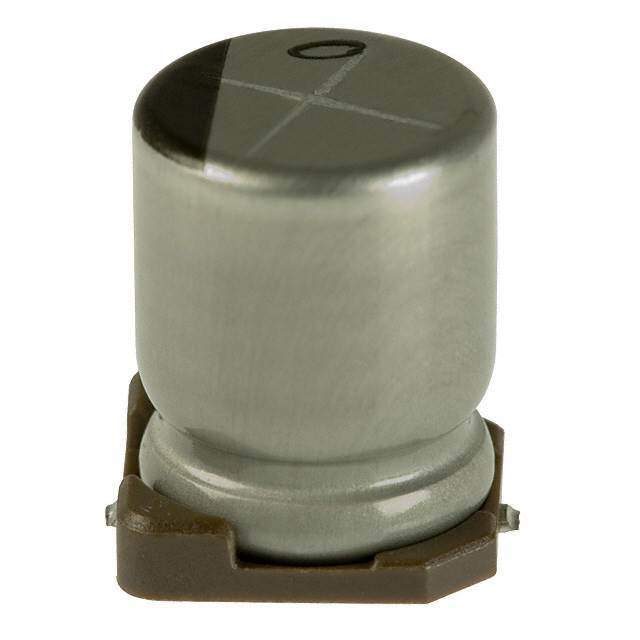

UUD1H680MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UUD1H680MNL1GS

Part No UUD1H680MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 68UF 20% 50V SMD
Datasheet
UUD1H680MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Status Active
Capacitance 68μF
Tolerance ±20%
Voltage Rating 50V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 150mA @ 120Hz
Ripple Current - High Frequency 300mA @ 100kHz
Impedance 340 mOhm
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 043528-UUD1H680MNL1GS
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UUD1H680MNL1GS CAD Model

Description

The Nichicon 043528-UUD1H680MNL1GS capacitor is a surface mount aluminum electrolytic capacitor with a capacitance of 68μF and a voltage rating of 50V.

  • Capacitance: 68μF
  • Voltage Rating: 50V
  • Application: General Purpose
  • Tolerance: ±20%
  • Impedance: 340 mOhm
  • Ripple Current: 150mA @ 120Hz and 300mA @ 100kHz
  • Lifetime: 5000 hours @ 105°C
  • Polarization: Polarized
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Category: Capacitors
  • Status: Active
  • Temperature Range: -55°C to 105°C
  • Supply and Demand Status: Balanced
