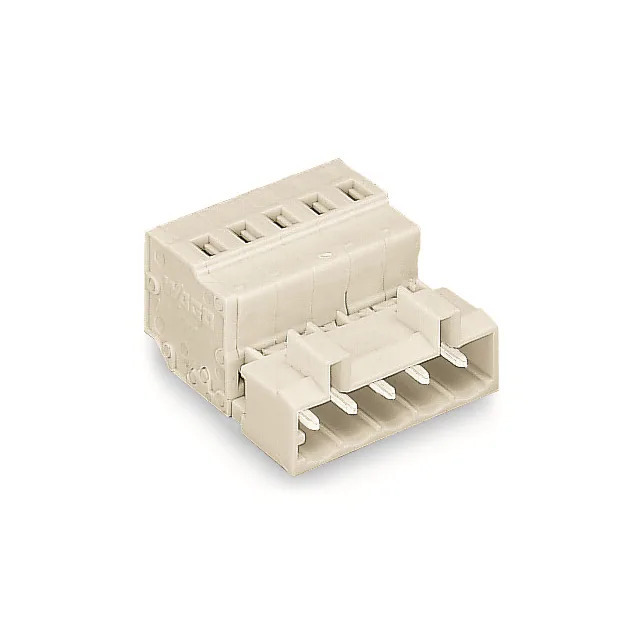

721-602 WAGO Corporation
Same model may have multiple batches, images only for reference.

721-602

Part No 721-602
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description 1-CONDUCTOR MALE CONNECTOR; 100% / 2 Position Terminal Block Plug, Male Pins 0.197" (5.00mm) 180° Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMIDI
Package Box
Product Status Active
Type Plug, Male Pins
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.197" (5.00mm)
Header Orientation -
Plug Wire Entry 180°
Termination Style Screwless - Push-In Spring
Mounting Type Free Hanging (In-Line)
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 15 A
Voltage - UL 600 V
Wire Gauge or Range - AWG 12-28 AWG
Wire Gauge or Range - mm² 0.08-2.5mm²
Color Gray
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length 8-9mm
Contact Material Electrolytic Copper
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length -
Insulation Height 0.563" (14.30mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364651-721-602
Ultra Librarian 3D Model Ultra Librarian 721-602 CAD Model

Description

The WAGO Corporation MCSMIDI series terminal block is a plug with male pins.

  • Temperature Range: -60°C to 100°C
  • Current: 12A
  • Pitch: 0.197" (5.00mm)
  • Mounting Type: Free Hanging (In-Line)
  • Positions Per Level: 2
  • Number of Levels: 1
  • Insulation Height: 0.563" (14.30mm)
  • Contact Material: Electrolytic Copper
  • Contact Finish: Tin
  • Housing Material: Polyamide (PA66)
  • Flammability Rating: UL94 V-0
  • Product Status: Active
