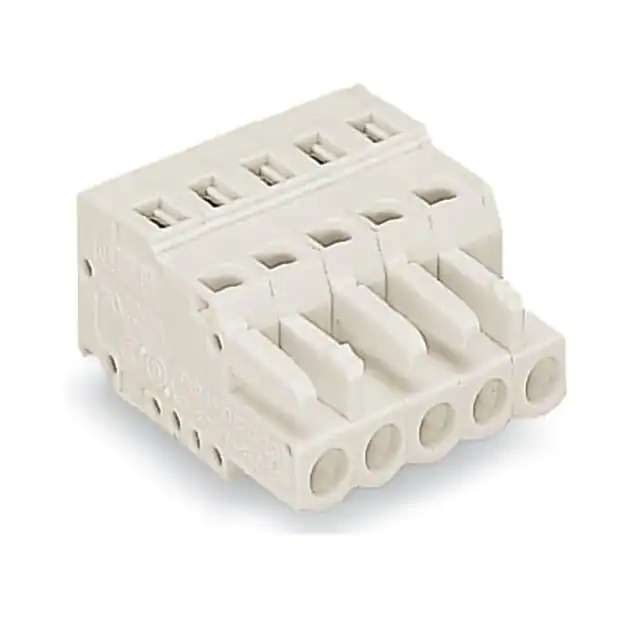

721-105/026-000 WAGO Corporation
Same model may have multiple batches, images only for reference.

721-105/026-000

Part No 721-105/026-000
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description 1-CONDUCTOR FEMALE PLUG; 100% PR / 5 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMIDI
Package Box
Product Status Active
Type Plug, Female Sockets
Number of Positions 5
Positions Per Level 5
Number of Levels 1
Pitch 0.197" (5.00mm)
Header Orientation -
Plug Wire Entry 180°
Termination Style Screwless - Push-In Spring
Mounting Type Free Hanging (In-Line)
Current - IEC 16A
Voltage - IEC 630 V
Current - UL 15 A
Voltage - UL 600 V
Wire Gauge or Range - AWG 12-28 AWG
Wire Gauge or Range - mm² 0.08-2.5mm²
Color Gray
Temperature Range - Operating -60°C ~ 85°C
Contact Mating Finish Tin
Features Retention Latches (Non-Wire Side)
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length 8-9mm
Contact Material Copper Alloy
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length -
Insulation Height 0.563" (14.30mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1364665-721-105/026-000
Ultra Librarian 3D Model Ultra Librarian 721-105/026-000 CAD Model

Description

The WAGO 1364665-721-105/026-000 is a plug with female sockets from the MCSMIDI series.

  • Product Name: WAGO 1364665-721-105/026-000
  • Series: MCSMIDI
  • Category: Terminal blocks, headers, plugs, and sockets
  • Mounting Type: Free hanging (in-line)
  • Temperature Range: -60°C to 85°C
  • Color: Gray
  • Housing Material: Polyamide (PA66) and nylon 6/6
  • Termination Style: Screwless push-in spring
  • Positions: 5
  • Positions Per Level: 5
  • Wire Gauges: 12-28 AWG or 0.08-2.5mm²
  • Current Rating (IEC): 16A
  • Current Rating (UL): 15A
  • Voltage Rating (UL): 600V
  • Voltage Rating (IEC): 630V
  • Contact Material: Copper alloy
  • Mating Finish: Tin
  • Product Status: Active
