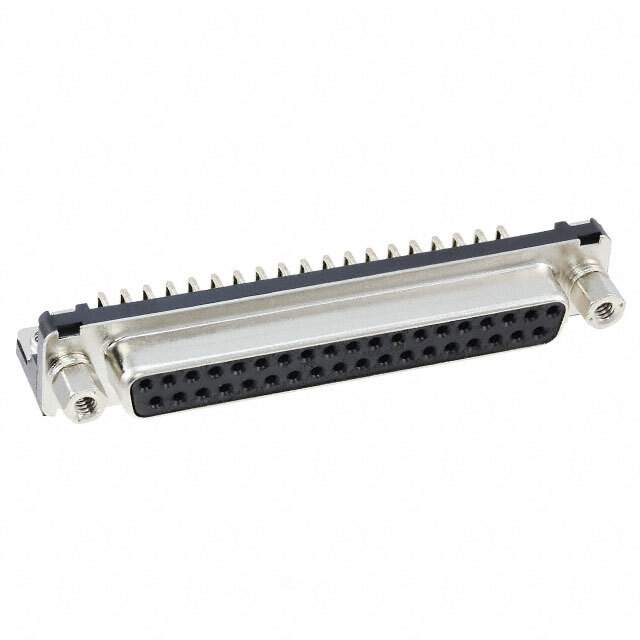

RDCD-37S-LNA(4-40)(55) Real Image
Same model may have multiple batches, images only for reference.

RDCD-37S-LNA(4-40)(55)

Part No RDCD-37S-LNA(4-40)(55)
Manufacturer Hirose Electric Co Ltd
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 37POS R/A SLDR / 37 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Hirose Electric Co Ltd
Series RD*D
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 37
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 4 (DC, C)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 350V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 85°C
Base Product Number RDCD
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340244-RDCD-37S-LNA(4-40)(55)
Ultra Librarian 3D Model Ultra Librarian RDCD-37S-LNA(4-40)(55) CAD Model

Description

The RDCD-37S-LNA(4-40)(55) is a D-sub connector assembly from Hirose Electric Co Ltd.

  • Number of Positions: 37
  • Connector Type: Receptacle, Female Sockets
  • Voltage Rating: 350V
  • Current Rating: 3A
  • Termination: Solder
  • Contact Finish - Mating: Gold
  • Mounting Type: Panel Mount, Through Hole, Right Angle
  • Operating Temperature: -55°C to 85°C
  • RoHS Status: Compliant
  • Series: RD*D
  • Shell Material, Finish: Steel, Nickel Plated
