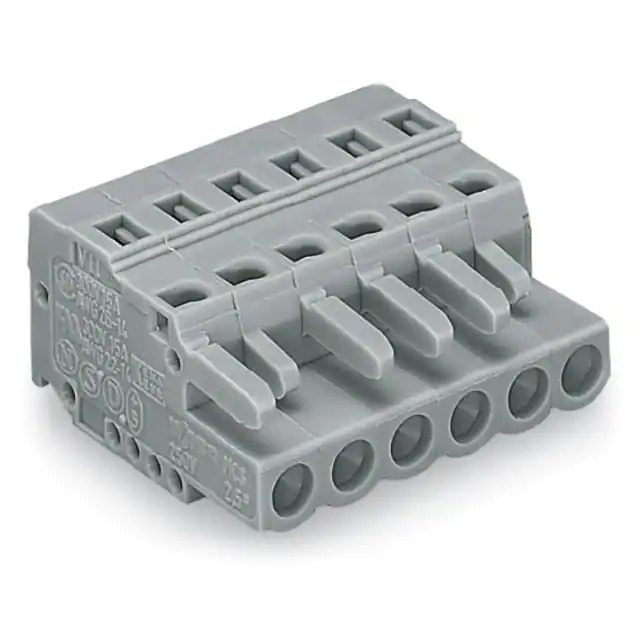

Same model may have multiple batches, images only for reference.

231-104/026-000

Name: 231-104/026-000
Brand: WAGO Corporation
SKU: 1364656
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	231-104/026-000
Manufacturer	WAGO Corporation
Catalog	Headers, Plugs and Sockets
Description	1-CONDUCTOR FEMALE PLUG; 2.5 MM; / 4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	WAGO Corporation
Series	MCSMIDI Classic
Package	Box
Product Status	Active
Type	Plug, Female Sockets
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.197" (5.00mm)
Header Orientation	-
Plug Wire Entry	180°
Termination Style	Screwless - Push-In Spring
Mounting Type	Free Hanging (In-Line)
Current - IEC	16A
Voltage - IEC	630 V
Current - UL	15 A
Voltage - UL	600 V
Wire Gauge or Range - AWG	12-28 AWG
Wire Gauge or Range - mm²	0.08-2.5mm²
Color	Gray
Temperature Range - Operating	-60°C ~ 85°C
Contact Mating Finish	Tin
Features	Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	8-9mm
Contact Material	Copper Alloy
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Tail Length	-
Insulation Height	0.563" (14.30mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1364656-231-104/026-000
Ultra Librarian 3D Model	Ultra Librarian 231-104/026-000 CAD Model

Alternative Products

Description

The WAGO Corporation MCSMIDI Classic series plug with female sockets is a versatile connector for various applications.

Features: Retention Latches on Non-Wire Side
Mounting Type: Free-Hanging (In-Line)
Temperature Range: -60°C to 85°C
Color: Gray
Housing Material: Polyamide (PA66) and Nylon 6/6
Voltage Rating: 320V
Current Rating: 16A
Wire Gauge Range: 12-28 AWG
Termination Style: Screwless Push-In Spring
Flammability Rating: UL94 V-0
Contact Mating Finish: Tin
