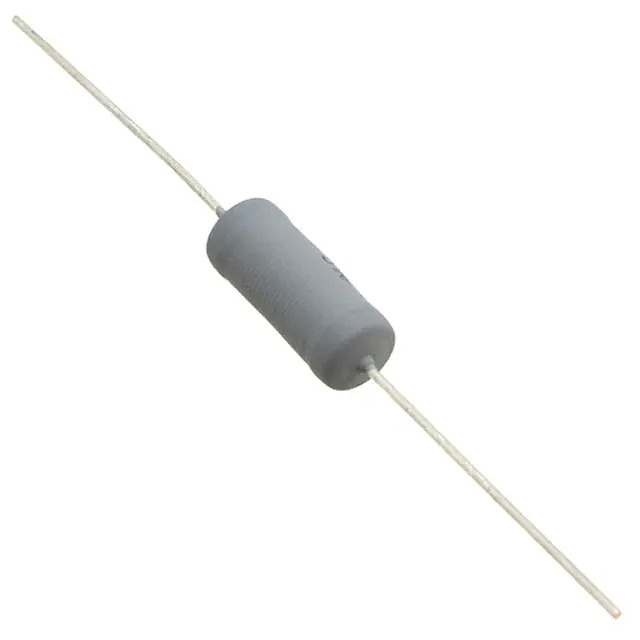

Same model may have multiple batches, images only for reference.
Z34081831000J6DC10 Vishay
Same model may have multiple batches, images only for reference.

Z34081831000J6DC10

Part No Z34081831000J6DC10
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 100 OHM 5W 5% AXIAL
Datasheet
Z34081831000J6DC10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series Z300-C
Product Status Active
Resistance 100 Ohms
Tolerance ±5%
Power (Watts) 5W
Composition Wirewound
Features Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 250°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.295" Dia x 0.709" L (7.50mm x 18.00mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1380338-Z34081831000J6DC10
Ultra Librarian 3D Model Ultra Librarian Z34081831000J6DC10 CAD Model

Description

The 1380338-Z34081831000J6DC10 is a through-hole resistor from Vishay Beyschlag/Draloric/BC Components.

  • Series: Z300-C
  • Features: Flame Retardant Coating, High Voltage, Pulse Withstand, Safety
  • Resistance: 100 Ohms
  • Power Rating: 5W
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Size: 0.295" (7.50mm) Diameter x 0.709" (18.00mm) Length
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Package/Case: Axial
