Same model may have multiple batches, images only for reference.

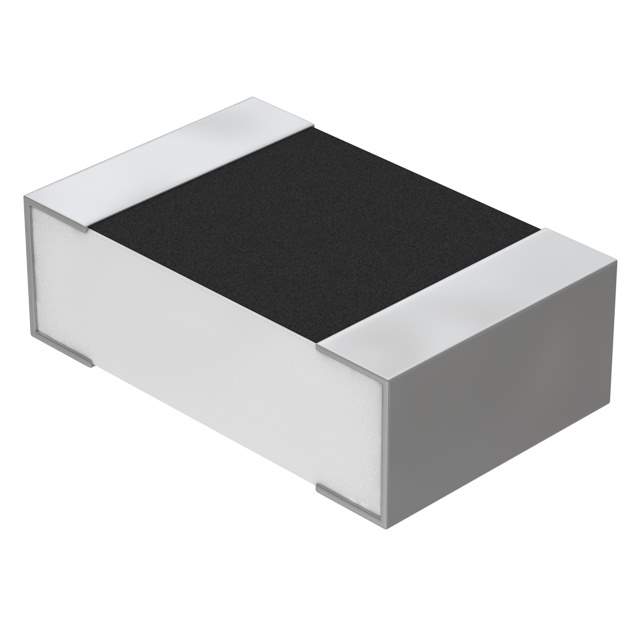

Y40226K34000B9R Real Image
Same model may have multiple batches, images only for reference.

Y40226K34000B9R

Part No Y40226K34000B9R
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 6.34K OHM 0.1% 1/5W 0805 / 6.34 kOhms ±0.1% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) Moisture Resistant, Non-Inductive Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Foil Resistors (Division of Vishay Precision Group)
Series FRSM
Package Tape & Reel
Resistance 6.34 kOhms
Tolerance ±0.1%
Power (Watts) 0.2W, 1/5W
Composition Metal Foil
Features Moisture Resistant, Non-Inductive
Temperature Coefficient ±0.2ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.025" (0.64mm)
Number of Terminations 2
Standard Package 2,500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1339804-Y40226K34000B9R
Ultra Librarian 3D Model Ultra Librarian Y40226K34000B9R CAD Model

Description

The Vishay FRSM chip resistor is a moisture-resistant and non-inductive device that is ideal for a wide range of applications.

  • Size / Dimension: 0.080" L x 0.050" W (2.03mm x 1.27mm)
  • Height: 0.025" (0.64mm)
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±0.2ppm/°C
  • Power: 0.2W
  • Resistance: 6.34 kOhms
