Same model may have multiple batches, images only for reference.

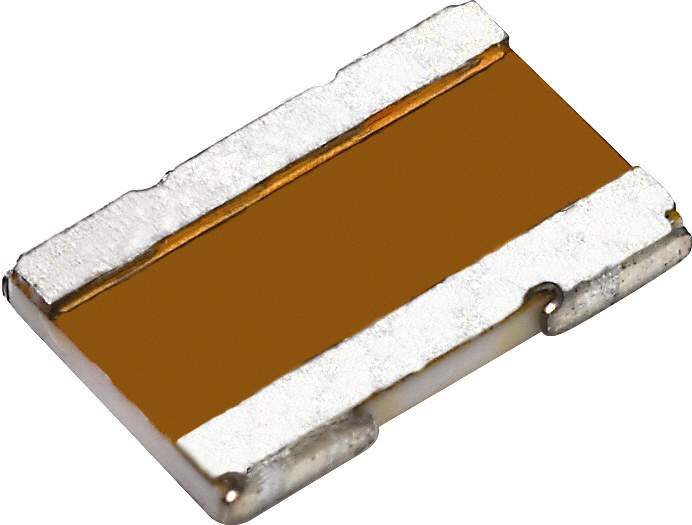

Y16063R30000F9R Real Image
Same model may have multiple batches, images only for reference.

Y16063R30000F9R

Part No Y16063R30000F9R
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 3.3 OHM 1% 1W 2516 WIDE / 3.3 Ohms ±1% 1W Chip Resistor Wide 2516 (6440 Metric), 1625 Current Sense, Moisture Resistant, Non-Inductive Metal Foil
Datasheet
Y16063R30000F9R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Foil Resistors (Division of Vishay Precision Group)
Series VCS1625ZP
Package Tape & Reel
Resistance 3.3 Ohms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Foil
Features Current Sense, Moisture Resistant, Non-Inductive
Temperature Coefficient ±0.2ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case Wide 2516 (6440 Metric) , 1625
Supplier Device Package SMD
Size / Dimension 0.160" L x 0.250" W (4.06mm x 6.35mm)
Height - Seated (Max) 0.040" (1.02mm)
Number of Terminations 4
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1350484-Y16063R30000F9R
Ultra Librarian 3D Model Ultra Librarian Y16063R30000F9R CAD Model

Description

The Vishay Foil Resistors (Division of Vishay Precision Group) VCS1625ZP is a chip resistor designed for surface mount applications.

  • Resistance: 3.3 Ohms
  • Power Rating: 1W
  • Series: VCS1625ZP
  • Tolerance: ±1%
  • Temperature Coefficient: ±0.2ppm/°C
  • Package/Case: Wide 2516 (6440 Metric)
  • Maximum Height: 0.040" (1.02mm)
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
