Same model may have multiple batches, images only for reference.

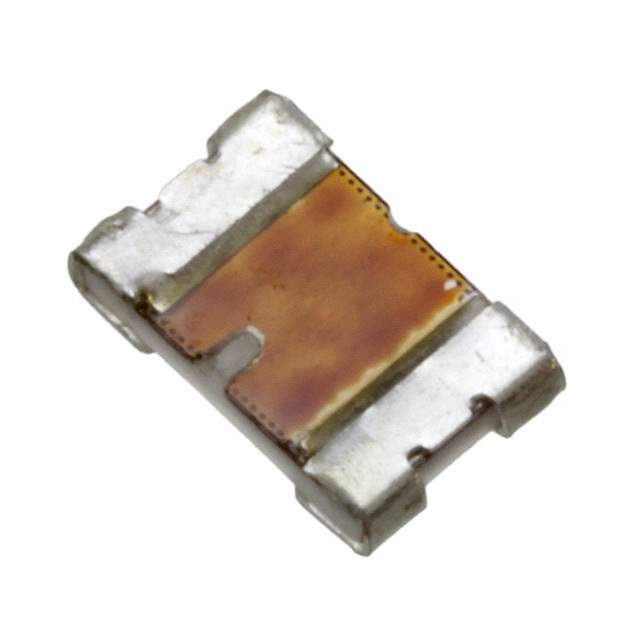

Y11200R10000D9W Real Image
Same model may have multiple batches, images only for reference.

Y11200R10000D9W

Part No Y11200R10000D9W
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.1 OHM 0.5% 1/4W 1610 / 100 mOhms ±0.5% 0.25W, 1/4W Chip Resistor Nonstandard Current Sense, Moisture Resistant, Non-Inductive Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Foil Resistors (Division of Vishay Precision Group)
Series VCS1610
Package Tray
Resistance 100 mOhms
Tolerance ±0.5%
Power (Watts) 0.25W, 1/4W
Composition Metal Foil
Features Current Sense, Moisture Resistant, Non-Inductive
Temperature Coefficient ±2ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case Nonstandard
Dimension 0.160" L x 0.100" W (4.06mm x 2.54mm)
Height - Seated (Max) 0.040" (1.02mm)
Number of Terminations 4
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names Y1112-.1A
Standard Package 50
Win Source Part Number 1230718-Y11200R10000D9W
Ultra Librarian 3D Model Ultra Librarian Y11200R10000D9W CAD Model

Description

The Vishay Foil Resistors VCS1610 is a surface mount chip resistor that has a resistance of 100 mOhms and a tolerance of ±0.5%.

  • Resistance: 100 mOhms
  • Tolerance: ±0.5%
  • Power Rating: 0.25W or 1/4W
  • Temperature Coefficient: ±2ppm/°C
  • Inductive: Non-Inductive
  • Moisture Resistant: Yes
  • Application: Current Sense
  • Package/Case: Non-Standard
  • Terminations: 4
  • Dimension: 0.160" L x 0.100" W (4.06mm x 2.54mm)
  • Failure Rate: -
  • Application: Chip Resistor
  • Temperature Range: -55°C to 150°C
