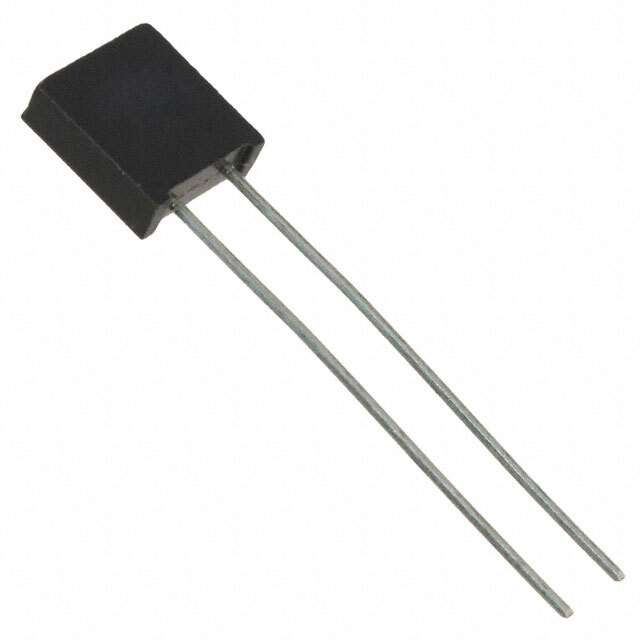

Same model may have multiple batches, images only for reference.
Y09255R00000F0L Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

Y09255R00000F0L

Part No Y09255R00000F0L
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 5 OHM 8W 1% TO220-2
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 5 Ohms
Tolerance ±1%
Power (Watts) 8W
Composition Metal Foil
Features Non-Inductive
Temperature Coefficient ±2ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Case / Package TO-220-2
Supplier Device Package TO-220
Size / Dimension 0.400" L x 0.150" W (10.16mm x 3.81mm)
Height - Seated (Max) 0.845" (21.46mm)
Number of Terminations 2
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1585129-Y09255R00000F0L
Ultra Librarian 3D Model Ultra Librarian Y09255R00000F0L CAD Model
