Same model may have multiple batches, images only for reference.

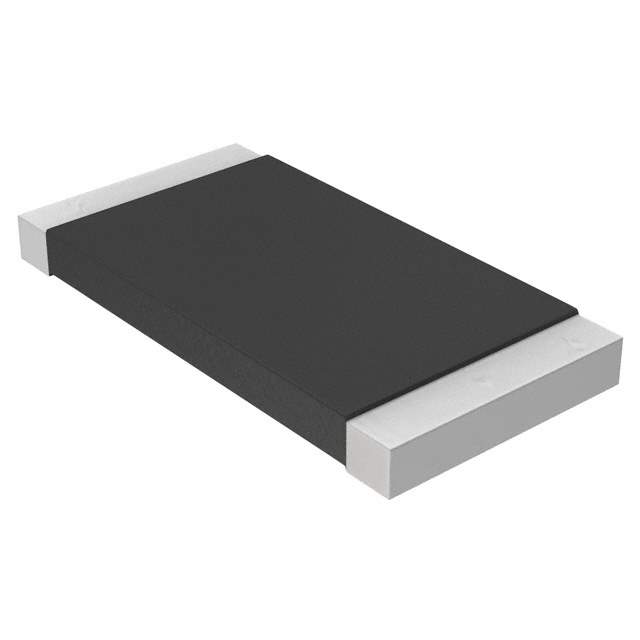

WSLT2512R0200FEA Real Image
Same model may have multiple batches, images only for reference.

WSLT2512R0200FEA

Part No WSLT2512R0200FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.02 OHM 1% 1W 2512 / 20 mOhms ±1% 1W Chip Resistor 2512 (6432 Metric) Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet
WSLT2512R0200FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Reel - TR
Resistance 20 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Element
Features Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 275°C
Case / Package 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.125" W (6.35mm x 3.18mm)
Height - Seated (Max) 0.035" (0.89mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number WSLT-.02TR,WSLT-.02DKR,WSLT-.02CT
Standard Package 2,000
Win Source Part Number 1327274-WSLT2512R0200FEA
Ultra Librarian 3D Model Ultra Librarian WSLT2512R0200FEA CAD Model

Description

The WSLT2512R0200FEA is a chip resistor that is designed to provide reliable and precise resistance for various applications.

  • Resistance: 20 mOhms
  • Power Rating: 1W
  • Composition: Metal element
  • Features: Anti-sulfur, automotive AEC-Q200, moisture-resistant, and pulse-withstanding
  • Temperature Range: -65°C to 275°C
  • Win Source Part Number: 1327274
  • Category: chip resistor - surface mount
