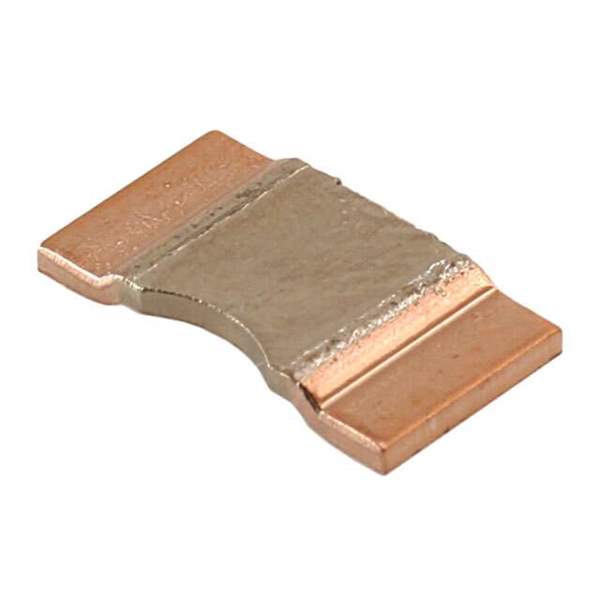

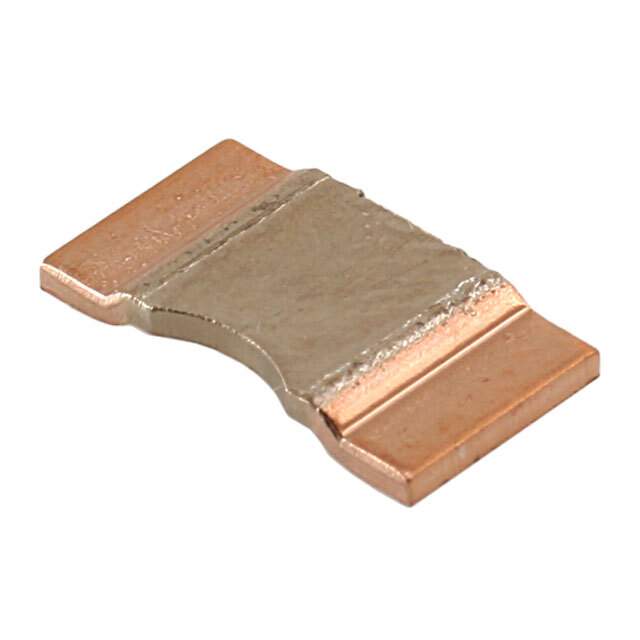

Same model may have multiple batches, images only for reference.

WSLP39212L000FEA

Name: WSLP39212L000FEA
Brand: Vishay
SKU: 978809
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	WSLP39212L000FEA
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES 0.002 OHM 1% 5W 3921 / 2 mOhms ±1% 5W Chip Resistor Nonstandard Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet	WSLP39212L000FEA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Vishay Dale
Series	WSLP3921
Package	Tape & Reel
Resistance	2 MOhms
Tolerance	±1%
Power (Watts)	5W
Composition	Metal Element
Features	Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient	±75ppm/°C
Temperature Range - Operating	-65°C ~ 170°C
Package / Case	Nonstandard
Supplier Device Package	3921
Ratings	AEC-Q200
Dimension	0.394" L x 0.205" W (10.00mm x 5.20mm)
Height - Seated (Max)	0.020" (0.50mm)
Number of Terminations	2
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0030
Other Names	541-10005-6,541-10005-2,WSLP39212L000FEA-ND,541-10005-1
Standard Package	3,000
Win Source Part Number	978809-WSLP39212L000FEA
Ultra Librarian 3D Model	Ultra Librarian WSLP39212L000FEA CAD Model

Description

The WSLP39212L000FEA is a chip resistor used in surface mount technology.

Resistance: It has a resistance of 2 MOhms with a tolerance of ±1% and a temperature coefficient of ±75ppm/°C.
Composition: The WSLP39212L000FEA is a metal element composition with a power rating of 5W.
Package: It has a nonstandard package/case and a supplier device package of 3921.
Rating: It is AEC-Q200 rated and is moisture resistant and pulse-withstanding.
Application: The WSLP39212L000FEA is suitable for use in automotive applications.
