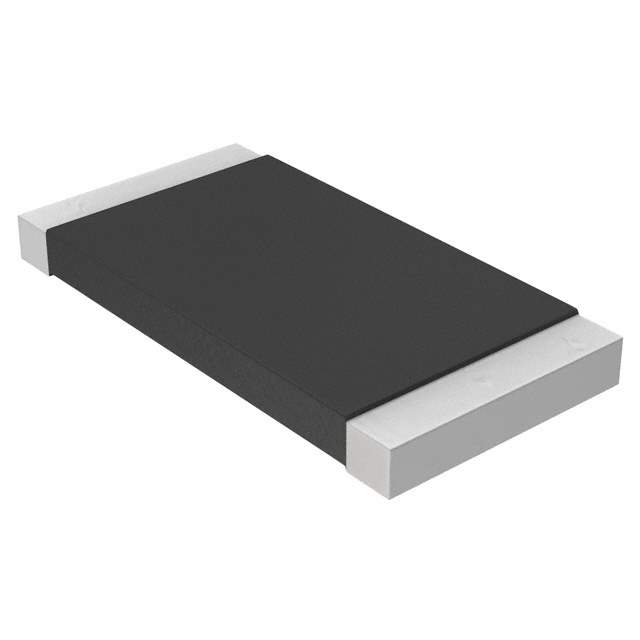

Same model may have multiple batches, images only for reference.

WSL25126L800FEA18

Name: WSL25126L800FEA18
Brand: Vishay
SKU: 998818
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	WSL25126L800FEA18
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES 0.0068 OHM 1% 2W 2512 / 6.8 mOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet	WSL25126L800FEA18 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Vishay Dale
Series	WSL-HP
Package	Tape & Reel
Resistance	6.8 mOhms
Tolerance	±1%
Power (Watts)	2W
Composition	Metal Element
Features	Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient	±110ppm/°C
Temperature Range - Operating	-65°C ~ 170°C
Package / Case	2512 (6432 Metric)
Supplier Device Package	2512
Ratings	AEC-Q200
Dimension	0.250" L x 0.125" W (6.35mm x 3.18mm)
Height - Seated (Max)	0.035" (0.89mm)
Number of Terminations	2
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0030
Other Names	541-10120-6,541-10120-2,541-10120-1
Standard Package	2,000
Win Source Part Number	998818-WSL25126L800FEA18
Ultra Librarian 3D Model	Ultra Librarian WSL25126L800FEA18 CAD Model

Description

The WSL25126L800FEA18 by Vishay Dale is a chip resistor - surface mount device that features anti-sulfur, automotive AEC-Q200, current sense, moisture resistant, and pulse withstanding capabilities.

Package: Tape and Reel
Height: 0.035" (0.89mm)
Tolerance: ±1%
Temperature Coefficient: ±110ppm/°C
Power Rating: 2W
Resistance: 6.8 mOhms
Package/Case: 2512 (6432 Metric)
Operating Temperature: -65°C to 170°C
ECCN: EAR99
HTSUS Code: 8533.21.0030
