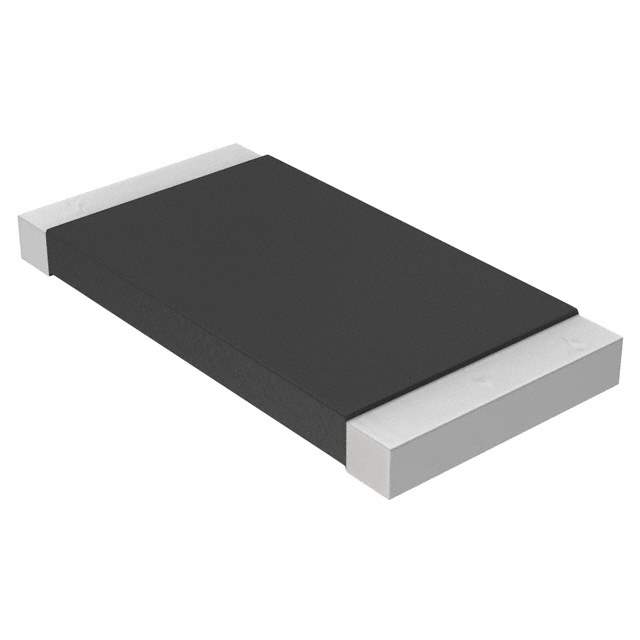

The WSL25124L000FEA is a Power Metal Strip® resistor manufactured by Vishay. It's a surface mount resistor designed for high-power current sensing applications. The resistor's very low resistance value enables accurate current measurement with minimal power loss. Its rugged construction ensures reliable performance even in demanding environments.

Applications

• Current sensing in power supplies
• Motor control circuits
• Battery management systems
• Inverters
• Automotive electronics
• Industrial automation equipment

Features

• Power Metal Strip® construction
• Extremely low resistance (4 milliohms)
• High power rating
• Surface mount package (SMD)
• Low inductance
• Excellent long-term stability
• RoHS compliant

Benefits

• Precise current sensing with minimal voltage drop
• Efficient power utilization due to low resistance
• Compact size for space-constrained applications
• Reliable operation under harsh conditions
• Improved circuit efficiency
• Easy integration into automated assembly processes

Additional Details

This resistor boasts a very low resistance value of 0.004 Ohms (4 milliohms). The 2512 package designates its physical dimensions. The Power Metal Strip® construction uses a solid metal alloy resistive element, ensuring low resistance and high power handling. This resistor is intended for reflow soldering processes. It offers a low temperature coefficient of resistance (TCR), which contributes to its stable performance over a wide temperature range. Its low inductance makes it ideal for high-frequency applications. The component's compact size allows for high-density circuit designs. The high power rating enables it to handle significant current loads without significant self-heating.

The resistor's robust construction guarantees reliable operation in demanding environments, such as those found in automotive and industrial applications. The surface mount design facilitates automated assembly, lowering manufacturing costs. The component's compliance with RoHS standards signifies its environmental friendliness. The WSL25124L000FEA is commonly used in applications where precise and efficient current measurement is paramount for optimal system performance and safety.
