Same model may have multiple batches, images only for reference.

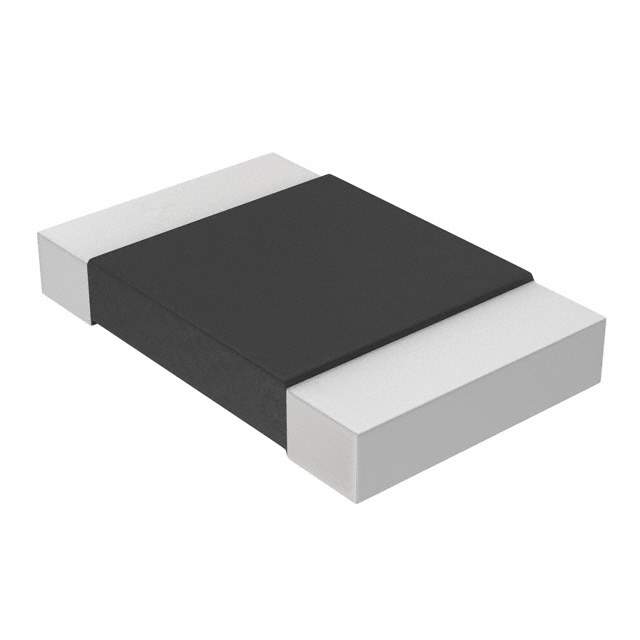

WSL0805R0100FEA18 Real Image
Same model may have multiple batches, images only for reference.

WSL0805R0100FEA18

Part No WSL0805R0100FEA18
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description Power Metal Strip® Resistors, High Power (2 x Standard WSL), Low Value (down to 0.001 Ω), Surface Mount | RES 0.01 OHM 1% 1/4W 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay Dale
Packaging Reel
Resistance 10 mOhms
Tolerance ±1%
Power (W) 0.25W, 1/4W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Manufacturer Package 0805
Supplier Device Package 0805
Parts Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Maximum) 0.018" (0.46mm)
Number of Terminations 2
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1280625-WSL0805R0100FEA18
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian WSL0805R0100FEA18 CAD Model

Description

The Vishay Dale WSL0805R0100FEA18 is a surface-mount metal element resistor that can withstand pulse loads.

  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Popularity: Medium
  • Applications: Automotive and Industrial
