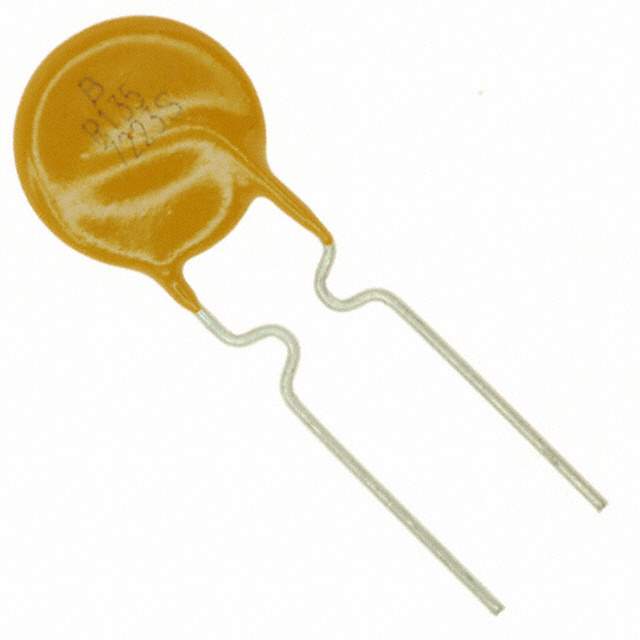

MF-R135-2 Real Image
Same model may have multiple batches, images only for reference.

MF-R135-2

Part No MF-R135-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R135-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 40A
Current - Hold (Ih) (Max) 1.35A
Current - Trip (It) 2.7A
Time to Trip 7.3s
Resistance - Initial (Ri) (Min) 65 mOhm
Resistance - Post Trip (R1) (Max) 170 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.350" Dia x 0.118" W (8.90mm x 3.00mm)
Height - Seated (Max) 0.744" (18.90mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 003418-MF-R135-2
Ultra Librarian 3D Model Ultra Librarian MF-R135-2 CAD Model

Description

The Bourns Inc. MF-R135-2 is a high-quality, polymeric circuit protection device.

  • Mounting Style: Through-hole
  • Maximum Voltage Rating: 30V
  • Maximum Current Rating: 40A
  • Current Hold: 1.35A
  • Current Trip: 2.7A
  • Time to Trip: 7.3s
  • Approvals: cURus and TUV
  • Popularity Rating: Medium
  • Status: Active
