Same model may have multiple batches, images only for reference.

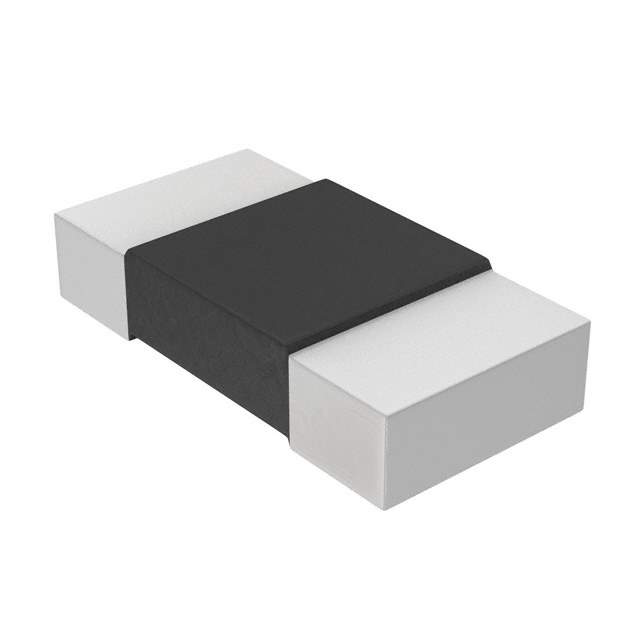

WSL0603R0500FEA18 Real Image
Same model may have multiple batches, images only for reference.

WSL0603R0500FEA18

Part No WSL0603R0500FEA18
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.05 OHM 1% 1/5W 0603 / 50 mOhms ±1% 0.2W, 1/5W Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet
WSL0603R0500FEA18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Reel - TR
Resistance 50 mOhms
Tolerance ±1%
Power (Watts) 0.2W, 1/5W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Size / Dimension 0.060" L x 0.030" W (1.52mm x 0.76mm)
Height - Seated (Max) 0.021" (0.53mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number WSLL-.05TR,WSLL-.05CT,WSLL-.05DKR
Standard Package 5,000
Win Source Part Number 1329204-WSL0603R0500FEA18
Ultra Librarian 3D Model Ultra Librarian WSL0603R0500FEA18 CAD Model

Description

The Vishay Dale WSL0603R0500FEA18 is a chip resistor - surface mount electronic component with a win source part number of 1329204-WSL0603R0500FEA18.

  • Manufacturer: Vishay Dale
  • Package Quantity: 5,000
  • AEC-Q200: Yes
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Power (Watts): 0.2W, 1/5W
  • Composition: metal element
  • Number of Terminations: 2
  • Resistance: 50 mOhms
  • Operating Temperature: -65°C to 170°C
  • Case / Package: 0603 (1608 Metric)
