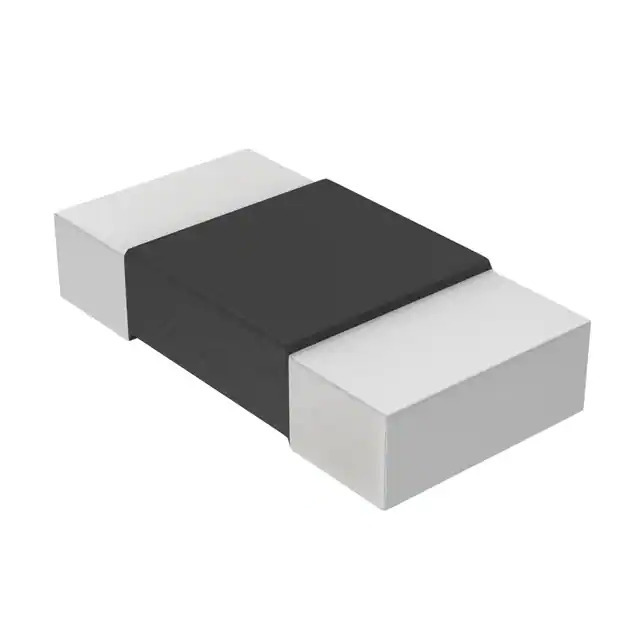

Same model may have multiple batches, images only for reference.
WSL0603R0100FEA Vishay
Same model may have multiple batches, images only for reference.

WSL0603R0100FEA

Part No WSL0603R0100FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.01 OHM 1% 1/10W 0603
Datasheet
WSL0603R0100FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSL
Package Tape & Reel
Product Status Active
Resistance 10 MOhms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Metal Element
Features Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Size / Dimension 0.060" L x 0.030" W (1.52mm x 0.76mm)
Height - Seated (Max) 0.021" (0.53mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375536-WSL0603R0100FEA
Ultra Librarian 3D Model Ultra Librarian WSL0603R0100FEA CAD Model

Description

The WSL0603R0100FEA is a chip resistor from Vishay Dale.

  • Series: WSL
  • Resistance: 10 MOhms
  • Power (Watts): 0.1W
  • Operating Temperature: -65°C to 170°C
  • Features: Anti-Sulfur, Moisture Resistant
  • Features: Current Sensing
  • Tolerance: ±1%
  • Package / Case: 0603
  • Features: Automotive AEC-Q200 Compliant
