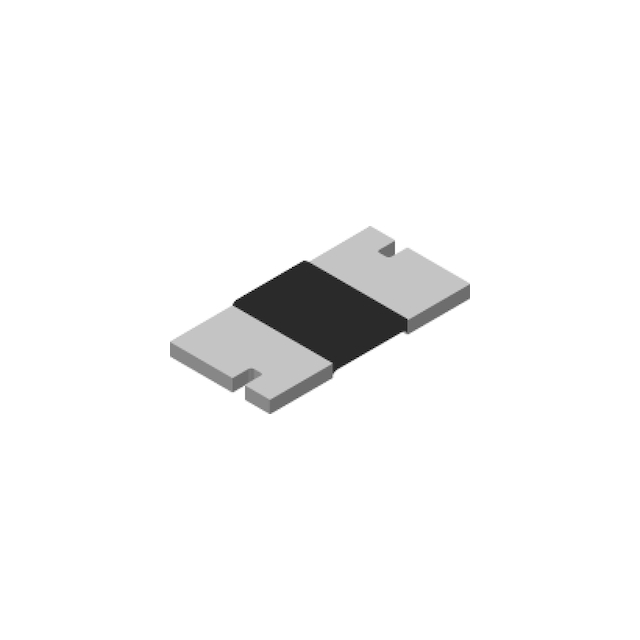

WSK25125L000FEA Real Image
Same model may have multiple batches, images only for reference.

WSK25125L000FEA

Part No WSK25125L000FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description WSK-2512 .005 1% EA E3 / 5 mOhms ±1% 1W Chip Resistor 2512 (6432 Metric) Anti-Sulfur, Automotive AEC-Q200, Current Sense, Pulse Withstanding Metal Element
Datasheet
WSK25125L000FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSK2512
Package Tape & Reel
Resistance 5 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Element
Features Anti-Sulfur, Automotive AEC-Q200, Current Sense, Pulse Withstanding
Temperature Coefficient ±35ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Dimension 0.250" L x 0.125" W (6.35mm x 3.18mm)
Height - Seated (Max) 0.035" (0.89mm)
Number of Terminations 4
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 541-WSK25125L000FEADKR,541-WSK25125L000FEACT,541-WSK25125L000FEATR
Standard Package 2,000
Win Source Part Number 1203766-WSK25125L000FEA
Ultra Librarian 3D Model Ultra Librarian WSK25125L000FEA CAD Model

Description

The WSK25125L000FEA chip resistor is a surface-mount device from Vishay with a 1W power rating and a resistance of 5 mΩ.

  • Tolerance: ±1%
  • Temperature Coefficient: ±35ppm/°C
  • Package: Tape and Reel
  • Units per Package: 2,000
  • Operating Temperature Range: -65°C to 170°C
  • Applications: Current sensing and pulse withstanding
