Same model may have multiple batches, images only for reference.

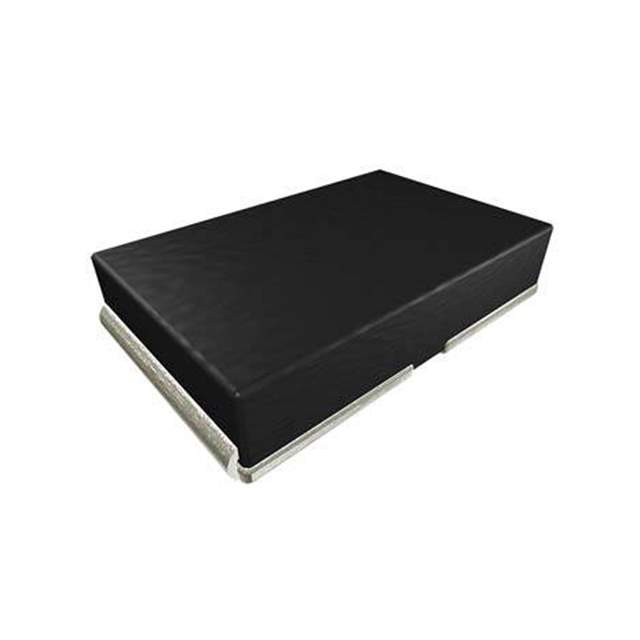

WSHP2818R1000FEA Real Image
Same model may have multiple batches, images only for reference.

WSHP2818R1000FEA

Part No WSHP2818R1000FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.1 OHM 1% 10W 2818 / 100 mOhms ±1% 10W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet
WSHP2818R1000FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSHP2818
Package Tape & Reel
Resistance 100 mOhms
Tolerance ±1%
Power (Watts) 10W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case Nonstandard
Supplier Device Package 2818
Ratings AEC-Q200
Size / Dimension 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height - Seated (Max) 0.069" (1.75mm)
Number of Terminations 2
Standard Package 3,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1345636-WSHP2818R1000FEA
Ultra Librarian 3D Model Ultra Librarian WSHP2818R1000FEA CAD Model

Description

The WSHP2818R1000FEA is a chip resistor used in surface mount and manufactured by Vishay Dale.

  • Series: WSHP2818
  • Features: Automotive AEC-Q200, current sense, moisture-resistant, and pulse-withstanding
  • Package: Tape and reel
  • Size/Dimension: 0.280 inches L x 0.181 inches W (7.10mm x 4.60mm)
  • Height Seated: 0.069 inches (1.75mm)
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • AEC-Q200 Rated: Yes
  • Power Output: 10W
  • Composition: Metal element
  • Number of Terminations: Two
  • Resistance: 100mOhms
  • Operating Temperature Range: -65°C ~ 170°C
