Same model may have multiple batches, images only for reference.

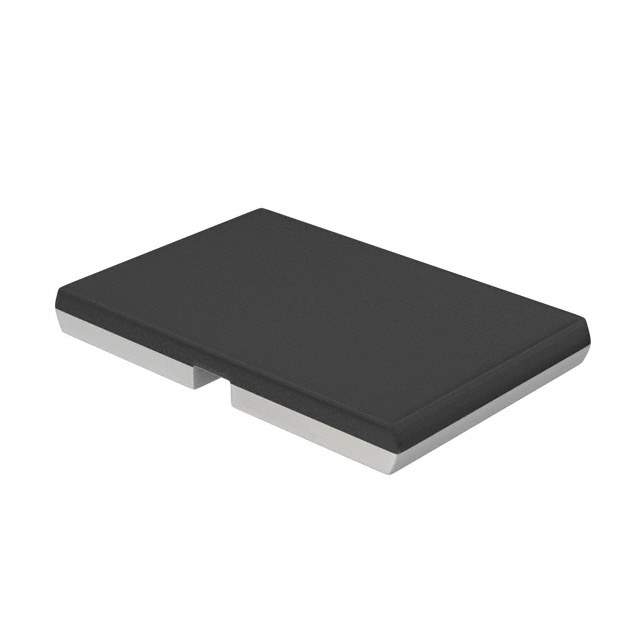

WSH28184L000FEA Real Image
Same model may have multiple batches, images only for reference.

WSH28184L000FEA

Part No WSH28184L000FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.004 OHM 1% 5W 2818 / 4 mOhms ±1% 5W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet
WSH28184L000FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSH2818
Package Tape & Reel
Product Status Obsolete
Resistance 4 mOhms
Tolerance ±1%
Power (Watts) 5W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case Nonstandard
Supplier Device Package 2818
Ratings AEC-Q200
Dimension 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height - Seated (Max) 0.055" (1.39mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names WSHA-.004CT,WSHA-.004TR,WSHA-.004DKR
Standard Package 3,500
Win Source Part Number 1019323-WSH28184L000FEA
Ultra Librarian 3D Model Ultra Librarian WSH28184L000FEA CAD Model

Description

This product is a chip resistor designed and manufactured by Vishay Dale.

  • Part Number: 1019323-WSH28184L000FEA
  • Category: resistors
  • Resistor Type: metal element
  • Resistance: 4 mOhms
  • Power Rating: 5W
  • Tolerance: ±1%
  • Package: non-standard tape and reel
  • Application: automotive
  • AEC-Q200 Rated: Yes
  • Features: moisture resistant, pulse withstanding
