Same model may have multiple batches, images only for reference.

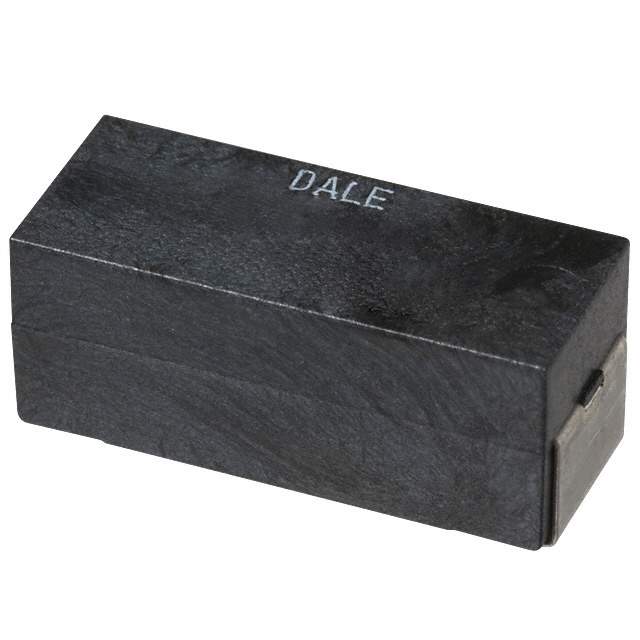

WSC69271R000FEA Real Image
Same model may have multiple batches, images only for reference.

WSC69271R000FEA

Part No WSC69271R000FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 1 OHM 1% 3W 6927 / 1 Ohms ±1% 3W Chip Resistor 6927 J-Lead Pulse Withstanding Wirewound
Datasheet
WSC69271R000FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSC
Package Tape & Reel
Resistance 1 Ohms
Tolerance ±1%
Power (Watts) 3W
Composition Wirewound
Features Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -65°C ~ 275°C
Package / Case 6927 J-Lead
Supplier Device Package 6927
Dimension 0.690" L x 0.275" W (17.53mm x 6.98mm)
Height - Seated (Max) 0.295" (7.49mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names WSCD-1.0CT,WSCD-1.0DKR,WSCD-1.0TR
Standard Package 725
Win Source Part Number 1104870-WSC69271R000FEA
Ultra Librarian 3D Model Ultra Librarian WSC69271R000FEA CAD Model

Description

The Vishay WSC69271R000FEA is a wirewound chip resistor designed for use in electronic circuits.

  • Resistance: 1 Ohms
  • Power Rating: 3W
  • Package: 6927 J-Lead (17.53mm x 6.98mm)
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Pulse Withstanding: Yes
  • Temperature Range: -65°C to 275°C
  • Packaging: Tape and reel
  • Quantity per Package: 725
