Same model may have multiple batches, images only for reference.

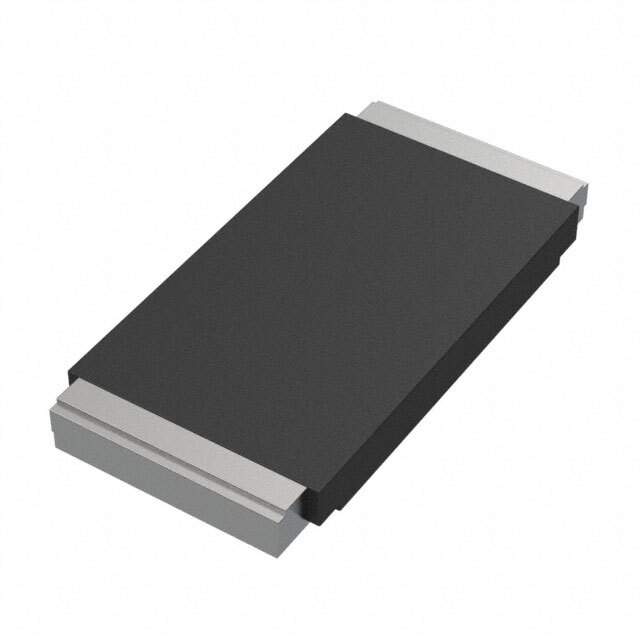

WFMB2010R1000FEA Real Image
Same model may have multiple batches, images only for reference.

WFMB2010R1000FEA

Part No WFMB2010R1000FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.1 OHM 2.0 W 1% 2010 SMD / 100 mOhms ±1% 2W Chip Resistor 2010 (5025 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Film
Datasheet
WFMB2010R1000FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WFM
Package Tape & Reel
Resistance 100 mOhms
Tolerance ±1%
Power (Watts) 2W
Composition Metal Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case 2010 (5025 Metric)
Supplier Device Package 2010
Ratings AEC-Q200
Dimension 0.200" L x 0.100" W (5.08mm x 2.54mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 541-10273-6,541-10273-1,541-10273-2
Standard Package 4,000
Win Source Part Number 1047394-WFMB2010R1000FEA
Ultra Librarian 3D Model Ultra Librarian WFMB2010R1000FEA CAD Model

Description

The WFMB2010R1000FEA is a metal film chip resistor that has a resistance of 100 mOhms and a power rating of 2W.

  • Manufacturer: Vishay Dale
  • Resistance: 100 mOhms
  • Power Rating: 2W
  • Application: Automotive, Moisture Resistance, Current Sensing
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Package: Tape and Reel
  • Standard Package: 4000
  • Height Seated: 0.026" (0.65mm)
  • Dimensions: 0.200" L x 0.100" W (5.08mm x 2.54mm)
  • Estimated Production Lead Time: Not Provided
