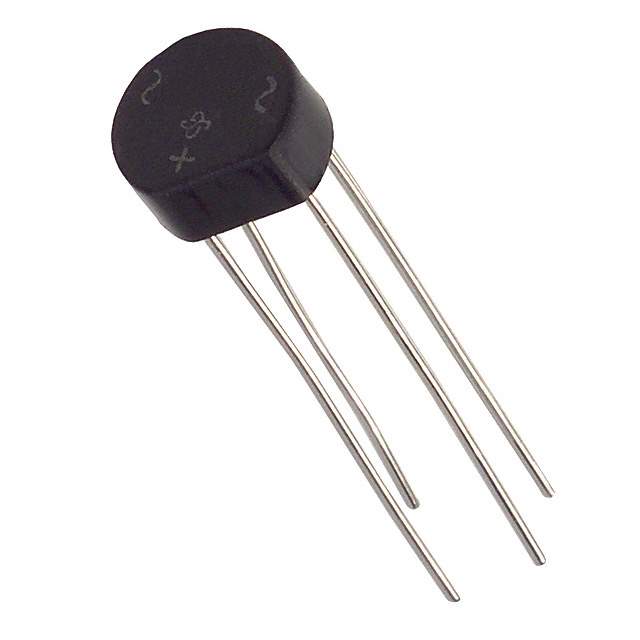

Same model may have multiple batches, images only for reference.

W08G-E4/51

Name: W08G-E4/51
Brand: Vishay
SKU: 1325798
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	W08G-E4/51
Manufacturer	Vishay
Catalog	Bridge Rectifiers
Description	BRIDGE RECT 1PHASE 800V 1.5A WOG / Bridge Rectifier Single Phase Standard 800 V Through Hole WOG
Datasheet	W08G-E4/51 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Manufacturer	Vishay General Semiconductor - Diodes Division
Packaging	Bulk
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	800 V
Current - Average Rectified (Io)	1.5 A
Voltage - Forward (Vf) (Max) @ If	1 V @ 1 A
Current - Reverse Leakage @ Vr	5 µA @ 800 V
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Through Hole
Case / Package	4-Circular, WOG
Supplier Device Package	WOG
Base Product Number	W08
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	W08G-E4/51GI,W08G-E4/1GI-ND,W08GHE4/51,W08GHE4/51GI,W08G-E4/1-ND,W08G-E4/1TR-ND,W08G-E4/1TR,W08GE4/51GI-ND,W08GE451,W08G-E4/1GI,W08G-E4/1
Standard Package	3,000
Win Source Part Number	1325798-W08G-E4/51
Ultra Librarian 3D Model	Ultra Librarian W08G-E4/51 CAD Model

Description

The Vishay General Semiconductor - Diodes Division W08G-E4/51 is a single-phase diode bridge rectifier that belongs to the Discrete Semiconductor Products category.

Average Rectified Current: 1.5 A
Peak Reverse Voltage: 800 V
Forward Voltage: 1 V @ 1 A
Reverse Leakage Current: 5 µA @ 800 V
Package: WOG package
Operating Temperature: -55°C to 150°C
ROHS3 Compliant: Yes
REACH: Unaffected
