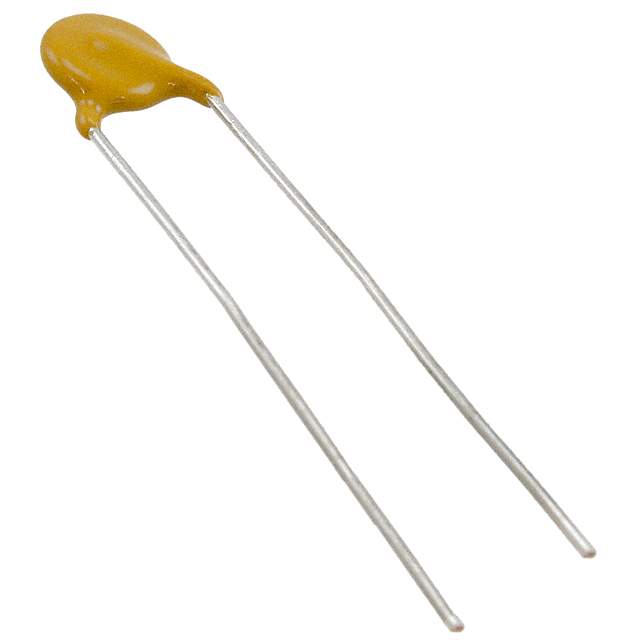

Same model may have multiple batches, images only for reference.

VY1472M63Y5UQ63V0

Name: VY1472M63Y5UQ63V0
Brand: Vishay
SKU: 1330977
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VY1472M63Y5UQ63V0
Manufacturer	Vishay
Catalog	Ceramic Capacitors
Description	CAP CER 4700PF 760VAC Y5U RADIAL / 4700 pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc
Datasheet	VY1472M63Y5UQ63V0 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Ceramic Capacitors
Manufacturer	Vishay Beyschlag/Draloric/BC Components
Packaging	Bulk
Capacitance	4700 pF
Tolerance	±20%
Voltage - Rated	760VAC
Temperature Coefficient	Y5U (E)
Temperature Range - Operating	-40°C ~ 125°C
Ratings	X1, Y1
Applications	Safety
Mounting	Through Hole
Case / Package	Radial, Disc
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.787" (20.00mm)
Lead Spacing	0.394" (10.00mm)
Lead Style	Formed Leads - Kinked
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.23.0060
Other Part Number	BC2379
Standard Package	500
Win Source Part Number	1330977-VY1472M63Y5UQ63V0
Ultra Librarian 3D Model	Ultra Librarian VY1472M63Y5UQ63V0 CAD Model

Alternative Products

Description

The Vishay Beyschlag/Draloric/BC Components VY1472M63Y5UQ63V0 is a ceramic capacitor that belongs to the X1, Y1 ratings category.

Capacitance: 4700 pF
Voltage Rating: 760VAC
Tolerance: ±20%
Temperature Coefficient: Y5U (E)
Packaging: Bulk
Mounting Type: Through Hole
Size/Dimension: 0.630 inches in diameter
Height: 0.787 inches
Application: Safety
Operating Temperature: -40°C to 125°C
ECCN: EAR99
ROHS3 Compliant: Yes
