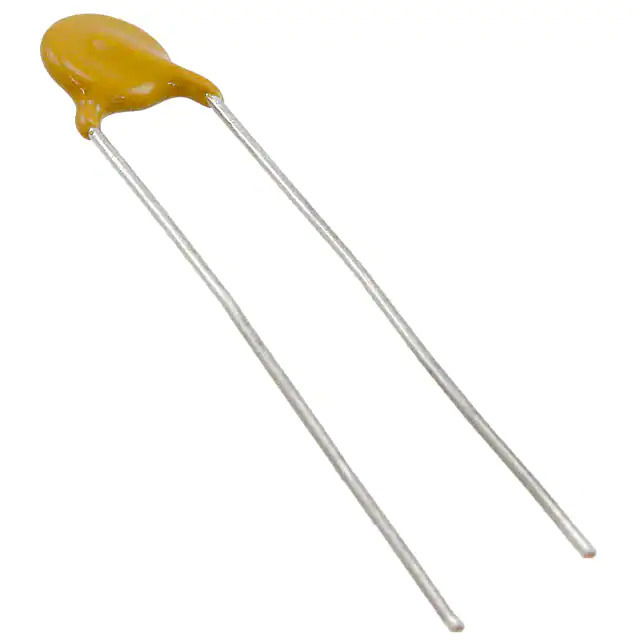

Same model may have multiple batches, images only for reference.
VY1472M63Y5UG63V0 Vishay
Same model may have multiple batches, images only for reference.

VY1472M63Y5UG63V0

Part No VY1472M63Y5UG63V0
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 4700PF 760VAC Y5U RADIAL / 4700 pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc
Datasheet
VY1472M63Y5UG63V0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series VY1
Package Bulk
Product Status Active
Capacitance 4700 pF
Tolerance ±20%
Voltage - Rated 760VAC
Temperature Coefficient Y5U (E)
Temperature Range - Operating -40°C ~ 125°C
Features -
Ratings X1, Y1
Applications Safety
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.787" (20.00mm)
Thickness (Max) -
Lead Spacing 0.394" (10.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1360483-VY1472M63Y5UG63V0
Ultra Librarian 3D Model Ultra Librarian VY1472M63Y5UG63V0 CAD Model

Description

The Vishay Beyschlag VY1472M63Y5UG63V0 is a ceramic capacitor with a capacitance of 4700 pF and a voltage rating of 760VAC. It is part of the VY1 series and is designed for through-hole mounting.

  • Manufacturer: Vishay Beyschlag
  • Product Name: VY1472M63Y5UG63V0
  • Series: VY1
  • Capacitance: 4700 pF
  • Voltage Rating: 760VAC
  • Mounting Type: Through-Hole
  • Package Type: Radial, Disc
  • Lead Spacing: 0.394" (10.00mm)
  • Tolerance: ±20%
  • Applications: X1, Y1
