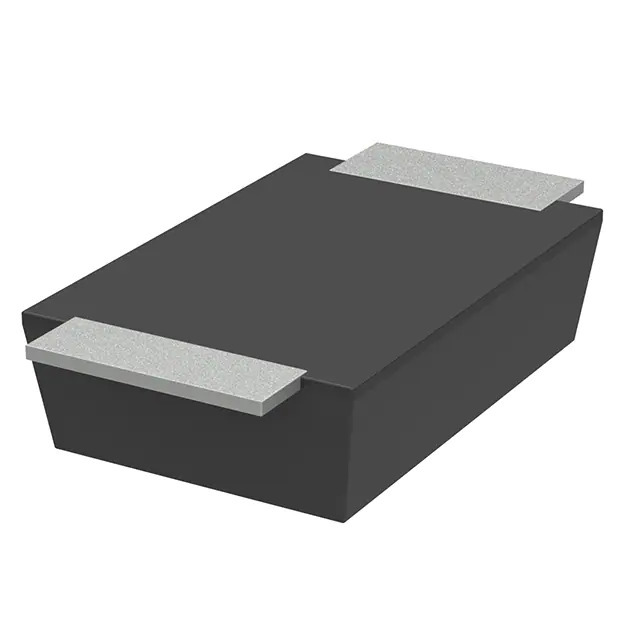

Same model may have multiple batches, images only for reference.
VSS8D5M6HM3/H Vishay
Same model may have multiple batches, images only for reference.

VSS8D5M6HM3/H

Part No VSS8D5M6HM3/H
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 2.7A SLIMSMAW
Datasheet
VSS8D5M6HM3/H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101, eSMP®, TMBS®
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 2.7A
Voltage - Forward (Vf) (Max) @ If 500 mV @ 2.5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 350 µA @ 60 V
Capacitance @ Vr, F 620pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SlimSMAW (DO-221AD)
Operating Temperature - Junction -40°C ~ 175°C
Base Product Number S8D5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367125-VSS8D5M6HM3/H
Ultra Librarian 3D Model Ultra Librarian VSS8D5M6HM3/H CAD Model

Description

The VSS8D5M6HM3/H is a rectifier diode designed for discrete semiconductor applications.

  • Series: Automotive, AEC-Q101, eSMP®, TMBS®
  • Manufacturer: Vishay General Semiconductor - Diodes Division
  • Maximum DC Reverse Voltage: 60V
  • Average Rectified Current: 2.7A
  • Forward Voltage: 500mV @ 2.5A
  • Recovery Speed: Less than 500ns
  • Reverse Leakage Current: 350µA @ 60V
  • Capacitance: 620pF @ 4V and 1MHz
  • Mounting Type: Surface Mount
  • Package: DO-221AC (SMA Flat Leads)
  • Device Package: SlimSMAW (DO-221AD)
  • Operating Temperature: -40°C to 175°C
