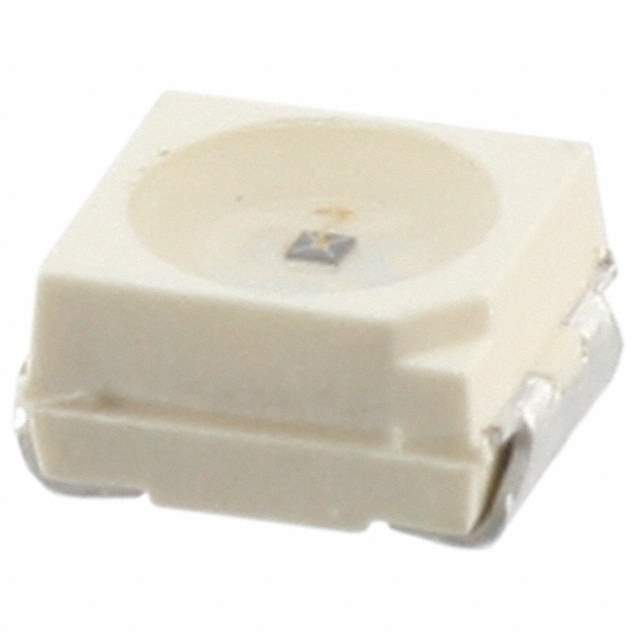

VSMB3940X01-GS08 Real Image
Same model may have multiple batches, images only for reference.

VSMB3940X01-GS08

Part No VSMB3940X01-GS08
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM 100MA SMD
Datasheet
VSMB3940X01-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Infrared (IR)
Continuous forward current- Max 100mA
Radiant Intensity (Ie) Min @ If 7mW/sr @ 1000mA
Wavelength 940nm
Forward Voltage 1.35V
Viewing Angle 120°
Orientation Top View
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Dimension 2-SMD, J-Lead
Win Source Part Number 057347-VSMB3940X01-GS08
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VSMB3940X01-GS08 CAD Model

Description

The Vishay VSMB3940X01-GS08 is an infrared (IR) component that comes in a top view orientation and SMD (SMT) mounting.

  • Forward Voltage: 1.35V
  • Viewing Angle: 120 degrees
  • Wavelength: 940nm
  • Radiant Intensity: 7mW/sr @ 1000mA
  • Temperature Range: -40 degrees Celsius to 85 degrees Celsius (TA)
  • Continuous Forward Current: 100mA
