Same model may have multiple batches, images only for reference.

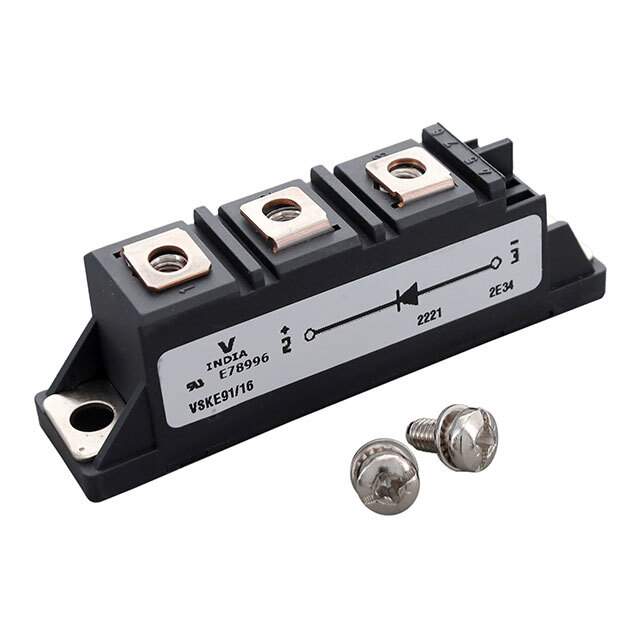

VS-VSKE91/16 Real Image
Same model may have multiple batches, images only for reference.

VS-VSKE91/16

Part No VS-VSKE91/16
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GP 1.6KV 100A ADD-A-PAK  /  Diode Standard 1600 V 100A Chassis Mount ADD-A-PAK®
Datasheet
VS-VSKE91/16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1600 V
Current - Average Rectified (Io) 100A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 mA @ 1600 V
Mounting Type Chassis Mount
Package / Case ADD-A-PAK (3)
Supplier Device Package ADD-A-PAK®
Operating Temperature - Junction -40°C ~ 150°C
Base Product Number VSKE91
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names VSVSKE9116
Standard Package 10
Win Source Part Number 1035717-VS-VSKE91/16
Ultra Librarian 3D Model Ultra Librarian VS-VSKE91/16 CAD Model

Description

The Vishay VS-VSKE91/16 is a single rectifier diode used in various electronic devices. It is a discrete semiconductor product that has a standard recovery >500ns, >200mA (Io) speed. The diode has a voltage DC reverse (Vr) (Max) of 1600V and an average rectified current (Io) of 100A. The current reverse leakage @ Vr is 10mA @ 1600V. The operating temperature range is -40°C to 150°C and it is mounted on a chassis mount. The package/case is ADD-A-PAK (3) and the supplier device package is ADD-A-PAK®.
