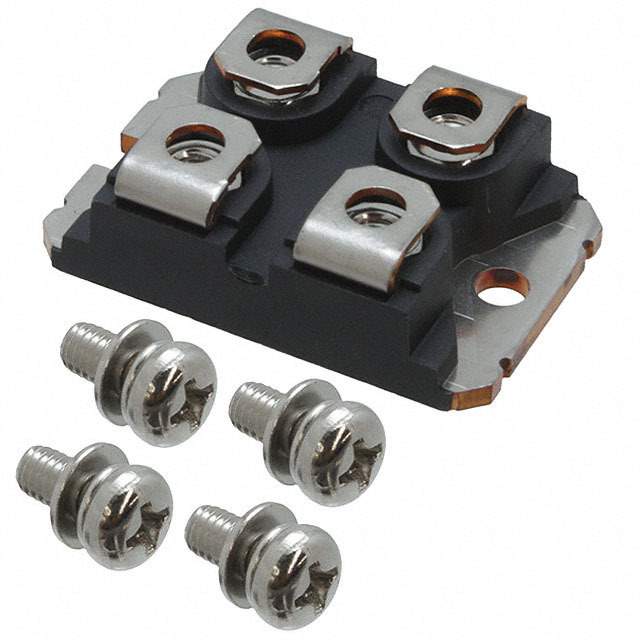

VS-UFB280FA40 Real Image
Same model may have multiple batches, images only for reference.

VS-UFB280FA40

Part No VS-UFB280FA40
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description Insulated Ultrafast Rectifier Module, 280 A
Datasheet
VS-UFB280FA40 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Configuration 2 Independent
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 400V
Current - Average Rectified (Io) (per Diode) 170A (DC)
Voltage - Forward (Vf) (Maximum) @ If 1.24V @ 100A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 93ns
Current - Reverse Leakage @ Vr 50μA @ 400V
Mounting Chassis Mount
Package SOT-227-4, miniBLOC
Manufacturer Package SOT-227
Win Source Part Number 1279916-VS-UFB280FA40
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name VS-UFB280FA40
Introduction Date May 18, 2011
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2023
Quantity per package 10
Ultra Librarian 3D Model Ultra Librarian VS-UFB280FA40 CAD Model

Description

The Vishay Semiconductor Diodes Division VS-UFB280FA40 is a standard diode designed for use in electronic circuits.

  • Voltage Forward (Vf): 1.24V @ 100A
  • Maximum DC Reverse Voltage (Vr): 400V
  • Recovery Speed: Fast
  • Reverse Recovery Current (Io): 200mA
  • Reverse Recovery Time (trr): 93ns
  • Current Reverse Leakage: 50μA @ 400V
  • Packaging: Tube
  • Quantity per Package: 10
  • Supply and Demand Status: Limited
  • ECCN: EAR99
