Same model may have multiple batches, images only for reference.

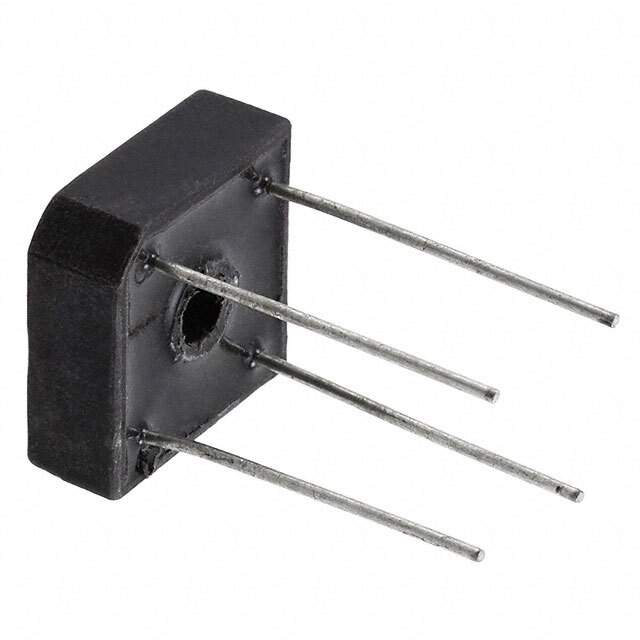

VS-KBPC106 Real Image
Same model may have multiple batches, images only for reference.

VS-KBPC106

Part No VS-KBPC106
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER 600V 3.0A D-46 / Diode Rectifier Bridge Single 600V 3A 4-Pin D-46
Datasheet
VS-KBPC106 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 600V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 1.5A
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-Square, D-72
Manufacturer Package D-72
Win Source Part Number 777973-VS-KBPC106
Popularity Medium
Supply and Demand Status Limited
Family Name VS-KBPC106
ECCN EAR99
Estimated EOL Date 2033
Ultra Librarian 3D Model Ultra Librarian VS-KBPC106 CAD Model

Description

The Vishay Semiconductor Diodes Division VS-KBPC106 is a standard technology single-phase diode. The specifications are as follows:

  • Package: D-72
  • Operating Temperature Range: -40°C to 150°C (TJ)
  • Voltage Peak Reverse (Maximum): 600V
  • Voltage Forward (Vf) (maximum): 1.1V @ 1.5A
  • Average Rectified Current (Io): 3A
  • Rds On (Typ): 600 mOhm
  • Family: VS-KBPC106
  • Application: Discrete Semiconductor Products
