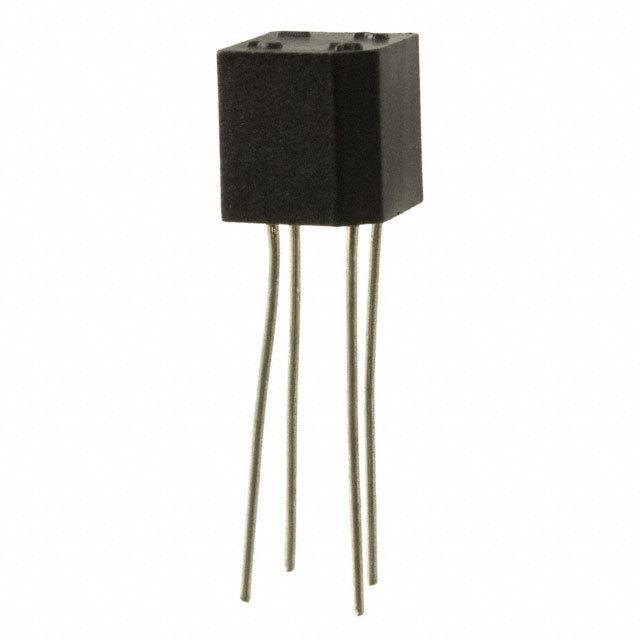

VS-1KAB100E Vishay
Same model may have multiple batches, images only for reference.

VS-1KAB100E

Part No VS-1KAB100E
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 1000V 1.5A D-38
Datasheet
VS-1KAB100E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1000V
Current - Average Rectified (Io) 1.2A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 1.2A
Current - Reverse Leakage @ Vr 10μA @ 1000V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-Square, D-38
Manufacturer Package D-38
Win Source Part Number 760770-VS-1KAB100E
Popularity Medium
Supply and Demand Status Limited
Family Name VS-1KAB100E
ECCN EAR99
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian VS-1KAB100E CAD Model

Description

The Vishay VS-1KAB100E is a diode that is designed for use in electronic circuits.

  • Manufacturer: Vishay Semiconductor Diodes Division
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Win Source Part Number: 760770-VS-1KAB100E
