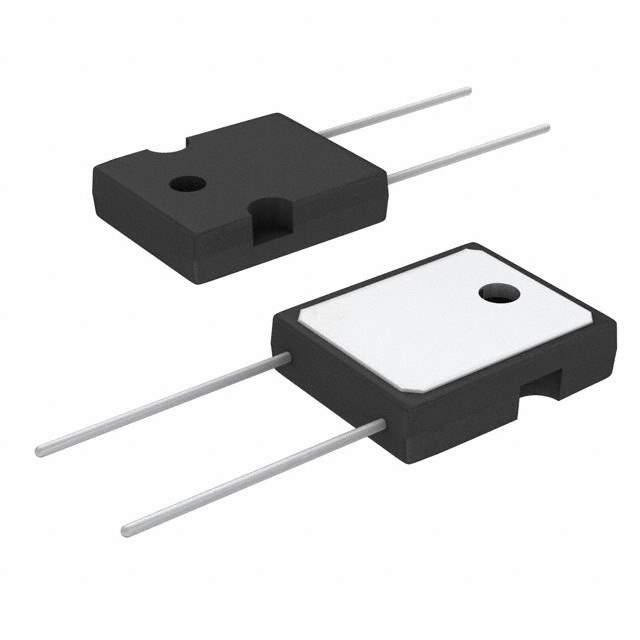

Same model may have multiple batches, images only for reference.

VS-EPU3006L-N3

Name: VS-EPU3006L-N3
Brand: Vishay
SKU: 1104251
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	VS-EPU3006L-N3
Manufacturer	Vishay
Catalog	Diodes, Rectifiers - Single
Description	DIODE GEN PURP 600V 30A TO247AD / Diode Standard 600 V 30A Through Hole TO-247AD
Datasheet	VS-EPU3006L-N3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Vishay General Semiconductor - Diodes Division
Series	FRED Pt®
Package	Tube
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600 V
Current - Average Rectified (Io)	30A
Voltage - Forward (Vf) (Max) @ If	2 V @ 30 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	45 ns
Current - Reverse Leakage @ Vr	30 µA @ 600 V
Mounting Type	Through Hole
Package / Case	TO-247-2
Supplier Device Package	TO-247AD
Operating Temperature - Junction	-55°C ~ 175°C
Base Product Number	EPU3006
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	VS-EPU3006L-N3GITR,VS-EPU3006L-N3GIDKRINACTIVE,VS-EPU3006L-N3GICT,VS-EPU3006L-N3GI,VS-EPU3006L-N3GIDKR,VS-EPU3006L-N3GIDKR-ND,VS-EPU3006L-N3GICTINACTIVE,VS-EPU3006L-N3GICT-ND,VS-EPU3006L-N3GITR-ND
Standard Package	25
Win Source Part Number	1104251-VS-EPU3006L-N3
Ultra Librarian 3D Model	Ultra Librarian VS-EPU3006L-N3 CAD Model

Alternative Products

Description

The VS-EPU3006L-N3 is a fast recovery diode that is designed for use in various electronic applications.

Win Source Part Number: 1104251-VS-EPU3006L-N3
Series: FRED Pt
Voltage DC Reverse: 600V
Average Rectified Current: 30A
Reverse Recovery Time: 45ns
Current Reverse Leakage: 30μA @ 600V
Mounting Technology: Through-Hole
Case/Package: TO-247-2
