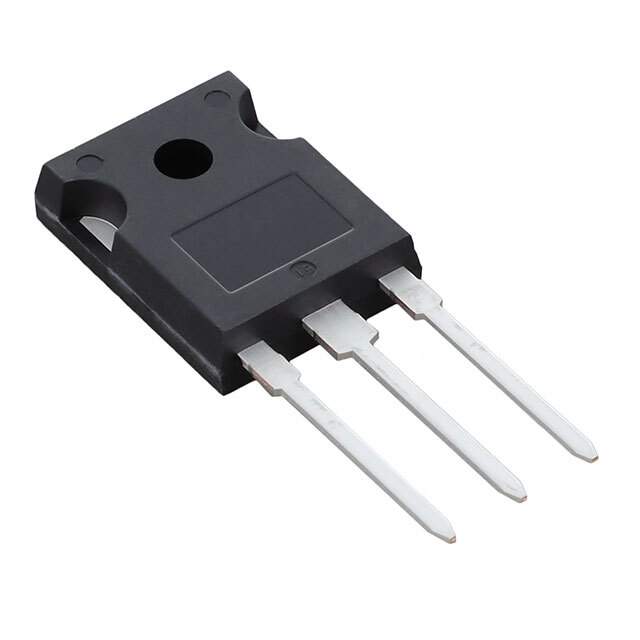

VS-C5PH6012L-N3

Part No VS-C5PH6012L-N3
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description 60A, 1200V, "X" SERIES FRED PT I / Diode Array 1200 V Through Hole TO-247-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Vishay General Semiconductor - Diodes Division
Series FRED Pt®
Package Tube
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Voltage - Forward (Vf) (Max) @ If 2.5 V @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 65 ns
Current - Reverse Leakage @ Vr 50 µA @ 1200 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AD
Base Product Number C5PH6012
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1340027-VS-C5PH6012L-N3
Ultra Librarian 3D Model Ultra Librarian VS-C5PH6012L-N3 CAD Model

Description

The Vishay General Semiconductor - Diodes Division VS-C5PH6012L-N3 is a diode array designed for rectification applications.

  • Diode Configuration: 5 Independent
  • Diode Type: Silicon Carbide Schottky
  • Voltage - DC Reverse (Vr) (Max): 1200V
  • Current - Average Rectified (Io) (per Diode): 30A
  • Voltage - Forward (Vf) (Max) @ If: 2.5V @ 30A
  • Reverse Recovery Time (trr): 65 ns
  • Current - Reverse Leakage @ Vr: 50 μA @ 1200V
  • Operating Temperature: -55°C ~ 175°C
  • Package / Case: TO-247-3
  • Series: FRED Pt®
  • Manufacturer: Vishay General Semiconductor - Diodes Division
  • REACH: REACH Unaffected
