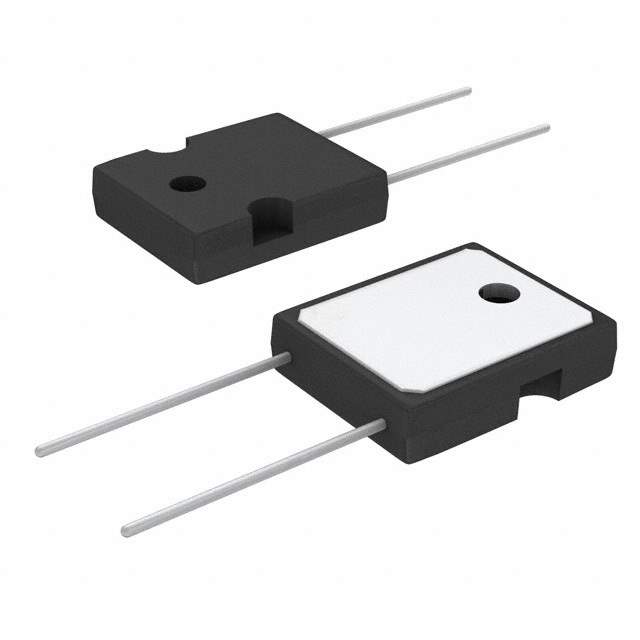

VS-90EPS12L-M3 Real Image
Same model may have multiple batches, images only for reference.

VS-90EPS12L-M3

Part No VS-90EPS12L-M3
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1.2KV 90A TO247AD / Diode 1200 V 90A Through Hole TO-247AD
Datasheet
VS-90EPS12L-M3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay General Semiconductor - Diodes Division
Package Tube
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 90A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 90 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 1200 V
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247AD
Operating Temperature - Junction -40°C ~ 150°C
Base Product Number 90EPS12
Standard Package 25
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1337722-VS-90EPS12L-M3
Ultra Librarian 3D Model Ultra Librarian VS-90EPS12L-M3 CAD Model

Description

The 1337722-VS-90EPS12L-M3 is a standard rectifier diode with a recovery time of over 500 nanoseconds and a current rating of over 200 mA.

  • Type: Standard Rectifier
  • Recovery Time: Over 500 nanoseconds
  • Current Rating: Over 200 mA
  • Maximum Reverse Voltage: 1200 V
  • Maximum Forward Voltage: 1.2 V @ 90 A
  • Mounting Type: Through Hole
  • Package: TO-247-2
  • Standard Package: 25
  • Application: Discrete Semiconductor Products
  • Manufacturer: Vishay General Semiconductor - Diodes Division
  • Operating Temperature: -40°C to 150°C
  • ECCN: EAR99
  • REACH: Compliant
