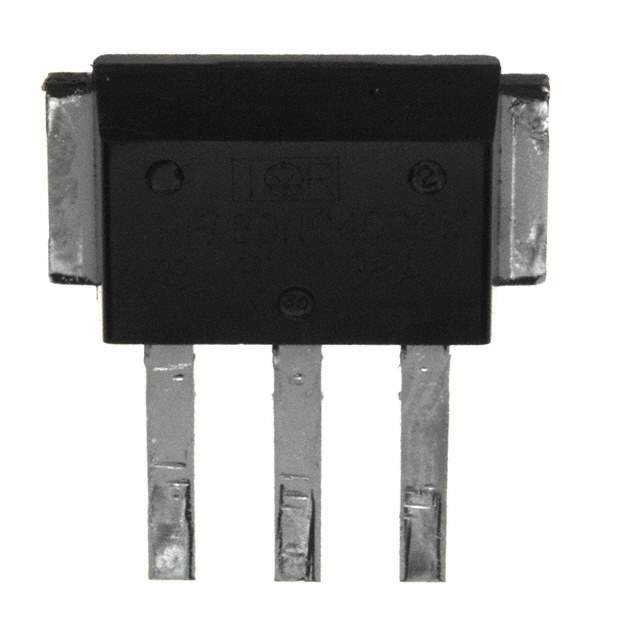

VS-83CNQ100ASMPBF Real Image1 VS-83CNQ100ASMPBF Real Image2
Same model may have multiple batches, images only for reference.
VS-83CNQ100ASMPBF Real Image1 VS-83CNQ100ASMPBF Real Image2
VS-83CNQ100ASMPBF Real Image1 VS-83CNQ100ASMPBF Real Image2
Same model may have multiple batches, images only for reference.

VS-83CNQ100ASMPBF

Part No VS-83CNQ100ASMPBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 100V 40A D618SM
Datasheet
VS-83CNQ100ASMPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 810mV @ 40A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1.5mA @ 80V
Operating Temperature - Junction -55°C to 175°C
Mounting Through Hole
Case / Package D-61-8-SM
Win Source Part Number 118783-VS-83CNQ100ASMPBF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian VS-83CNQ100ASMPBF CAD Model

Description

The Vishay 118783-VS-83CNQ100ASMPBF is a through-hole mounted Schottky diode with a maximum DC reverse voltage of 100V.

  • Maximum DC Reverse Voltage: 100V
  • Forward Voltage: 810mV @ 40A
  • Reverse Leakage Current: 1.5mA @ 80V
  • Operating Temperature Range: -55°C to 175°C
  • Package: D-61-8-SM case
  • Recovery Speed: 200mA
  • Popularity: Medium
  • Package Contains: 400 units
