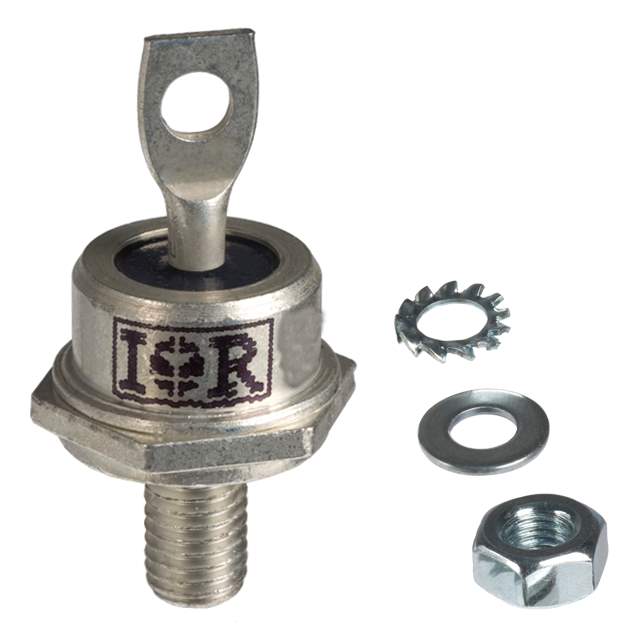

VS-70HFL80S05 Real Image
Same model may have multiple batches, images only for reference.

VS-70HFL80S05

Part No VS-70HFL80S05
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 800V 70A DO203AB
Datasheet
VS-70HFL80S05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 800V
Current - Average Rectified (Io) 70A
Voltage - Forward (Vf) (Maximum) @ If 1.85V @ 219.8A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 500ns
Current - Reverse Leakage @ Vr 100μA @ 800V
Mounting Chassis, Stud Mount
Package DO-203AB, DO-5, Stud
Manufacturer Package DO-203AB
Operating Temperature - Junction -40°C ~ 125°C
Win Source Part Number 764655-VS-70HFL80S05
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian VS-70HFL80S05 CAD Model

Description

The 764655-VS-70HFL80S05 is a high-quality electronic component that offers a fast recovery of 200mA (Io) speed. Vishay Semiconductor Diodes Division

  • Type: Standard
  • Mounting: Chassis, Stud
  • Current Average Rectified (Io): 70A
  • Reverse Recovery Time (trr): 500ns
  • Compliance: RoHS
  • Supply and Demand Status: Limited
  • Package: DO-203AB, DO-5, Stud
  • Voltage Forward (Vf) (Maximum) @ If: 1.85V @ 219.8A
  • Voltage DC reverse (Vr) (Maximum): 800V
  • Quantity Per Package: 100
