Same model may have multiple batches, images only for reference.

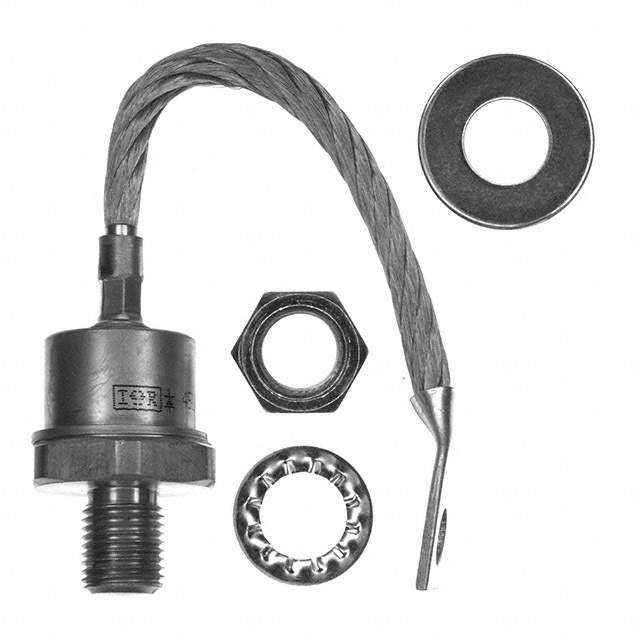

SD103R16S15PV Real Image
Same model may have multiple batches, images only for reference.

SD103R16S15PV

Part No SD103R16S15PV
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Datasheet
SD103R16S15PV Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1600 V
Current - Average Rectified (Io) 110A
Voltage - Forward (Vf) (Max) @ If 2.23 V @ 345 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.5 µs
Current - Reverse Leakage @ Vr 35 mA @ 1600 V
Mounting Type Stud Mount
Package / Case DO-205AC, DO-30, Stud
Supplier Device Package DO-205AC (DO-30)
Operating Temperature - Junction -40°C ~ 125°C
Base Product Number SD103
Other Names *SD103R16S15PV
Standard Package 25
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281960-SD103R16S15PV
Ultra Librarian 3D Model Ultra Librarian SD103R16S15PV CAD Model

Description

The SD103R16S15PV is a rectifier diode from Vishay General Semiconductor - Diodes Division.

  • Voltage Rating: 1600V
  • Current Rating: 110A
  • Forward Voltage: 2.23V @ 345A
  • Reverse Recovery Time: 1.5 µs
  • Mounting Type: Stud mount
  • Packaging: Bulk
  • Standard Package: 25
  • Package/Case: DO-205AC (DO-30, Stud)
  • Operating Temperature Range: -40°C to 125°C
  • RoHS: Non-compliant
