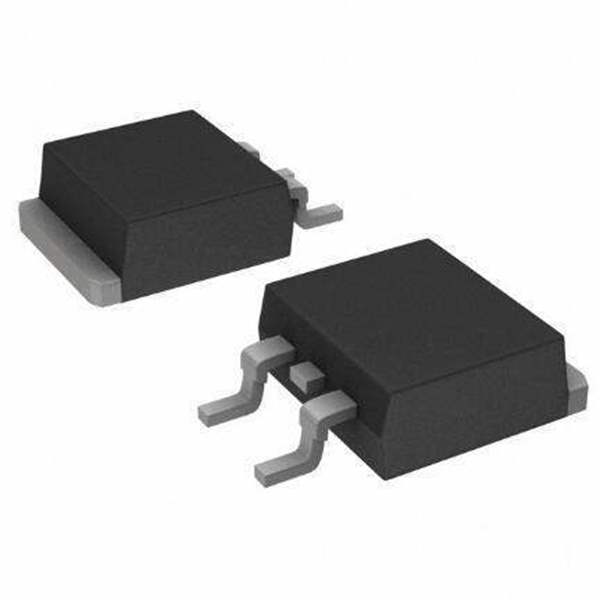

VS-30WQ06FNPBFVishay General Semiconductor - Diodes Division
Same model may have multiple batches, images only for reference.

VS-30WQ06FNPBF

Part No VS-30WQ06FNPBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 3.5A DPAK
Datasheet
VS-30WQ06FNPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Vishay General Semiconductor - Diodes Division
Category Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Packaging  Tube
Part Status Obsolete
Voltage - Forward (Vf) (Max) @ If 610 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 2 mA @ 60 V
Capacitance @ Vr, F 145pF @ 5V, 1MHz
Supplier Device Package TO-252AA (DPAK)
Operating Temperature - Junction -40°C ~ 150°C
Win Source Part Number WS1305769-VS-30WQ06FNPBF
Ultra Librarian 3D Model Ultra Librarian VS-30WQ06FNPBF CAD Model

Description

The VS-30WQ06FNPbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection.
