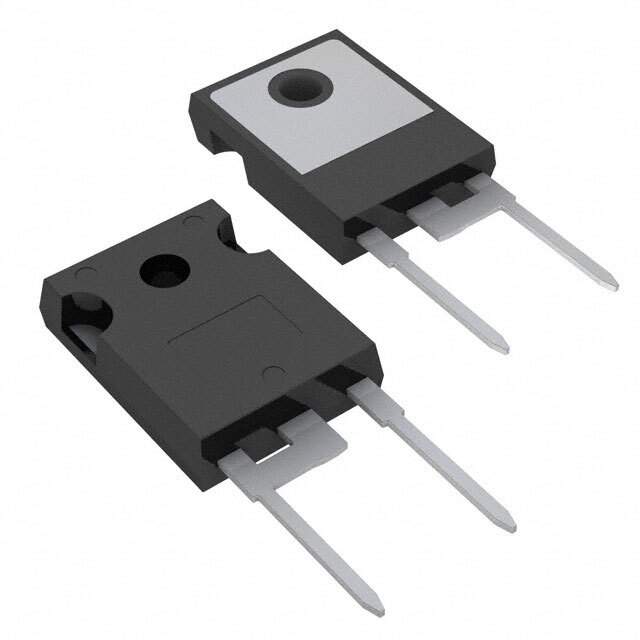

VS-30EPH03PBF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 300V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 1.25V @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 55ns
Current - Reverse Leakage @ Vr 60μA @ 300V
Mounting Through Hole
Case / Package TO-247AC Modified
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 142677-VS-30EPH03PBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VS-30EPH03PBF CAD Model

Description

The Vishay VS-30EPH03PBF is a standard type diode with a voltage rating of 300V and an average rectified current of 30A.

  • Voltage Rating: 300V
  • Average Rectified Current: 30A
  • Voltage Forward: 1.25V @ 30A
  • Reverse Recovery Time: 55ns
  • Diode Type: through-hole
  • Package: TO-247AC modified
  • Recovery Speed: 200mA (Io)
