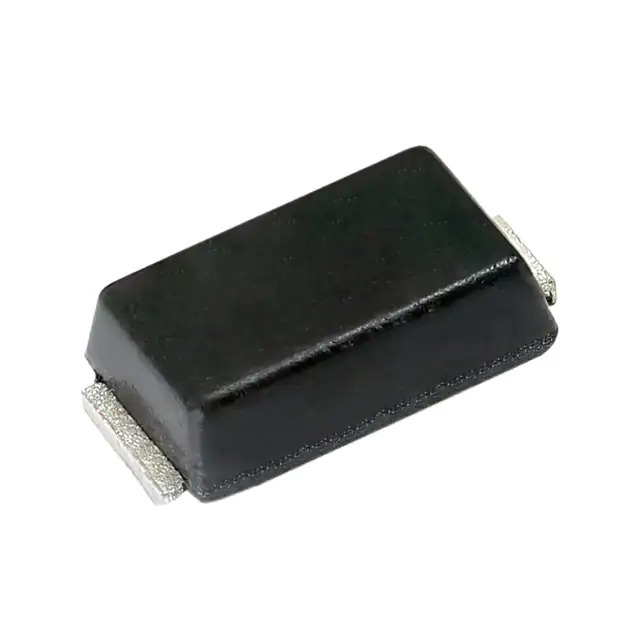

Same model may have multiple batches, images only for reference.
VS-2EQH01HM3/H Vishay
Same model may have multiple batches, images only for reference.

VS-2EQH01HM3/H

Part No VS-2EQH01HM3/H
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 2A DO220AA
Datasheet
VS-2EQH01HM3/H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101, FRED Pt®
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 23 ns
Current - Reverse Leakage @ Vr 1 µA @ 100 V
Capacitance @ Vr, F 6pF @ 200V
Mounting Type Surface Mount
Package / Case MicroSMP
Supplier Device Package MicroSMP (DO-219AD)
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number 2EQH01
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366906-VS-2EQH01HM3/H
Ultra Librarian 3D Model Ultra Librarian VS-2EQH01HM3/H CAD Model

Description

The VS-2EQH01HM3/H is a single rectifier diode from Vishay General Semiconductor - Diodes Division.

  • Application: Automotive
  • AEC-Q101: Yes
  • Maximum Reverse Voltage: 100V
  • Average Rectified Current: 2A
  • Recovery Time: Fast <500ns
  • Reverse Leakage Current: 1µA
  • Package: MicroSMP
  • Operating Temperature: -55°C to 175°C
