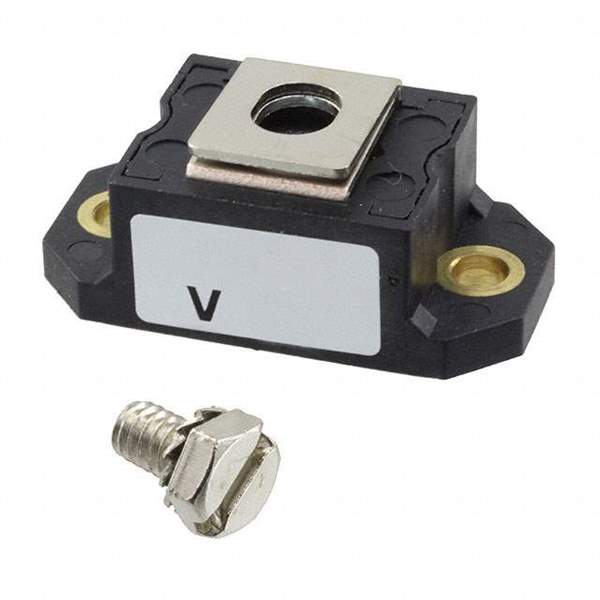

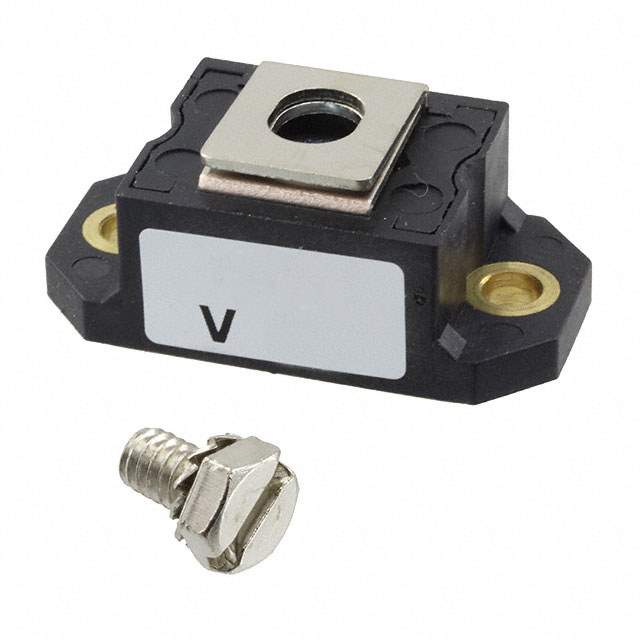

VS-249NQ150PBF Real Image
Same model may have multiple batches, images only for reference.

VS-249NQ150PBF

Part No VS-249NQ150PBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 150V 240A D-67 / Diode 150 V 240A Chassis Mount D-67 HALF-PAK
Datasheet
VS-249NQ150PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) 240A
Voltage - Forward (Vf) (Max) @ If 1.21 V @ 240 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 6 mA @ 150 V
Capacitance @ Vr, F 6000pF @ 5V, 1MHz
Mounting Type Chassis Mount
Package / Case D-67 HALF-PAK
Supplier Device Package D-67 HALF-PAK
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number 249NQ150
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1349916-VS-249NQ150PBF
Ultra Librarian 3D Model Ultra Librarian VS-249NQ150PBF CAD Model

Description

The VS-249NQ150PBF is a rectifier diode from Vishay General Semiconductor - Diodes Division that is designed for use in electronic devices.

  • Recovery: Fast, less than 500ns
  • Current Average Rectified: 240A
  • Current Reverse Leakage @ Vr: 6mA @ 150V
  • Capacitance @ Vr, F: 6000pF @ 5V, 1MHz
  • Mounting Type: Chassis Mounting
  • Technology: Schottky
  • Voltage DC Reverse (Vr) (Max): 150V
  • REACH: Unaffected
  • MSL Level: 1 (unlimited)
  • Package: D-67 HALF-PAK
