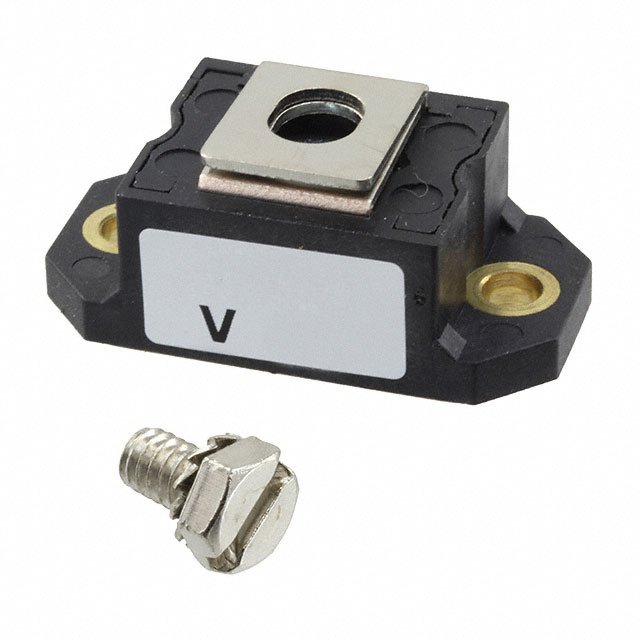

VS-123NQ100PBF

Name: VS-123NQ100PBF
Brand: Vishay
SKU: 399307
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	VS-123NQ100PBF
Manufacturer	Vishay
Catalog	Diodes, Rectifiers - Single
Description	DIODE MODULE 100V 120A D-67
Datasheet	VS-123NQ100PBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Vishay
Packaging	Bulk
Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	120A
Voltage - Forward (Vf) (Max) @ If	910mV @ 120A
Speed(Frequency)	Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr	3mA @ 100V
Capacitance @ Vr, F	2650pF @ 5V, 1MHz
Mounting	Chassis Mount
Case / Package	D-67
Operating Temperature - Junction	-55°C to 175°C
Win Source Part Number	129538-VS-123NQ100PBF
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian VS-123NQ100PBF CAD Model

Description

The Vishay VS-123NQ100PBF is a Schottky diode with a maximum DC reverse voltage of 100V and an average rectified current of 120A.

Maximum DC Reverse Voltage: 100V
Average Rectified Current: 120A
Forward Voltage: 910mV @ 120A
Reverse Leakage Current: 3mA @ 100V
Capacitance: 2650pF @ 5V, 1MHz
Operating Temperature Range: -55°C to 175°C
Mounting: Chassis Mount
Package: D-67
Speed: Fast Recovery = 200mA (Io)
Popularity: Medium
