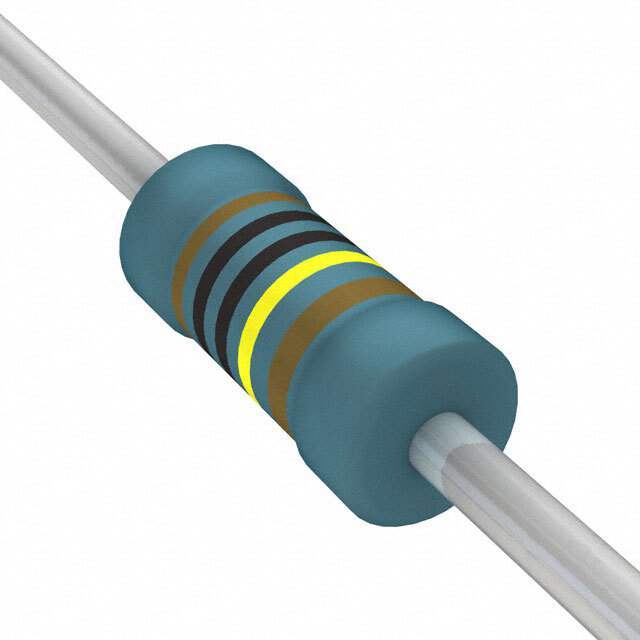

Same model may have multiple batches, images only for reference.

VR37000001004FR500

Name: VR37000001004FR500
Brand: Vishay
SKU: WS1307756
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VR37000001004FR500
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 1M OHM 1% 1/2W AXIAL
Datasheet	VR37000001004FR500 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1307756-VR37000001004FR500
Manufacturer	Vishay Beyschlag/Draloric/BC Components
Category	Resistors>Through Hole Resistors
Packaging	Cut Tape (CT) Tape & Box (TB)
Part Status	Active
Resistance (Ohms)	1 MOhms
Tolerance (+ or -)	±1%
Power (Watts)	0.5W, 1/2W
Composition	Metal Film
Operating Temperature	-55°C ~ 155°C
Size / Dimension	0.157" Dia x 0.354" L (4.00mm x 9.00mm)
Ultra Librarian 3D Model	Ultra Librarian VR37000001004FR500 CAD Model

Alternative Products

Description

A metal glazed film is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned electrolytic copper wires are welded to the end-caps. The resistors are coated with a light blue lacquer which provides electrical, mechanical, and climatic protection. This coating is not resistant to aggressive fluxes and cleaning solvents. The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45.
