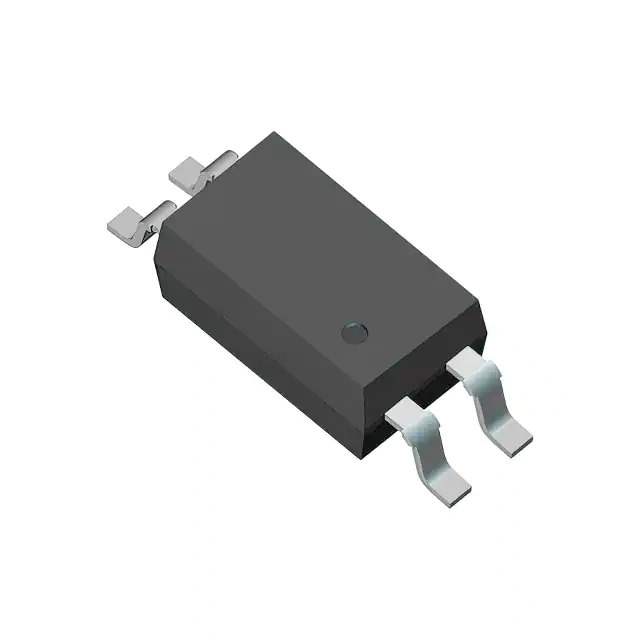

VOS615A-1T

Part No VOS615A-1T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOCOUPLER, PHOTOTRANSISTOR OUT
Datasheet
VOS615A-1T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Vishay
Package Tape & Reel
Product Status Active
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 40% @ 10mA
Current Transfer Ratio (Max) 80% @ 10mA
Turn On / Turn Off Time (Typ) 5µs, 5µs
Rise / Fall Time (Typ) 3µs, 4µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Surface Mount
Package / Case 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package 4-SSOP
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 697036-VOS615A-1T
Ultra Librarian 3D Model Ultra Librarian VOS615A-1T CAD Model

Description

The Vishay 697036-VOS615A-1T is a Transistor Photovoltaic Output Optoisolator.

  • Category: Isolators - Optoisolators - Transistor
  • Package Type: Surface Mount, 4-SOIC (0.173", 4.40mm Width)
  • Output Type: Transistor
  • Input Type: DC
  • Maximum Forward Current (If): 50 mA
  • Typical Forward Voltage (Vf): 1.2V
  • Rise/Fall Time: Approximately 3μs and 4μs
  • Current Output per Channel: 50mA
  • Channels: One
  • Isolation Voltage: 3750Vrms
  • Current Transfer Ratio: Minimum of 40% @ 10mA and maximum of 80% @ 10mA
  • Maximum Output Voltage: 80V
  • Maximum Vce Saturation: 400mV
  • Turn-On and Turn-Off Time: Approximately 5μs
  • Operating Temperature Range: -55°C to 110°C
  • Moisture Sensitivity Level: 1 (unlimited shelf life)
  • Status: Active
  • Manufacturer: Vishay
