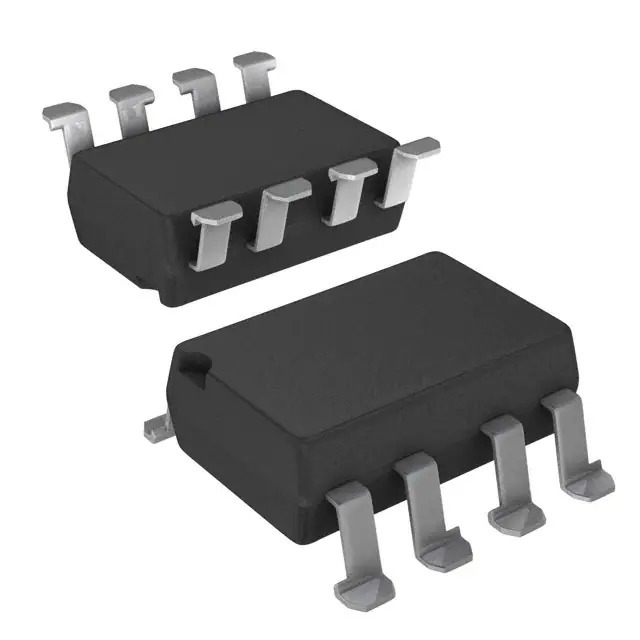

Same model may have multiple batches, images only for reference.

VOD3120AB-T

Name: VOD3120AB-T
Brand: Vishay
SKU: 1372504
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VOD3120AB-T
Manufacturer	Vishay
Catalog	Isolators - Gate Drivers
Description	OPTOISO IGBT MOSFET DRIVER 2.5A
Datasheet	VOD3120AB-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators - Isolators - Gate Drivers
Mfr	Vishay Semiconductor Opto Division
Series	-
Package	Tape & Reel
Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5300Vrms
Common Mode Transient Immunity (Min)	35kV/µs
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns
Pulse Width Distortion (Max)	70ns
Rise / Fall Time (Typ)	35ns, 35ns
Current - Output High, Low	2.5A
Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	1.37V
Current - DC Forward (If) (Max)	20 mA
Voltage - Output Supply	15V ~ 30V
Temperature Range - Operating	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	8-SMD
Approval Agency	CQC, cUL, UL, VDE
Base Product Number	VOD3120
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.49.8000
Win Source Part Number	1372504-VOD3120AB-T
Ultra Librarian 3D Model	Ultra Librarian VOD3120AB-T CAD Model

Description

The Vishay VOD3120AB-T is an optical coupling isolator designed for gate driver applications.

Temperature Range: -40°C to 105°C
Voltage Isolation: 5300Vrms
Package: 8-SMD, gull wing
Mounting Type: Surface mount
Voltage Forward (Vf): 1.37V
Current Output: 2.5A
Common Mode Transient Immunity: 35kV/μs
Pulse Width Distortion: 70ns
Approvals: CQC, cUL, UL, and VDE
