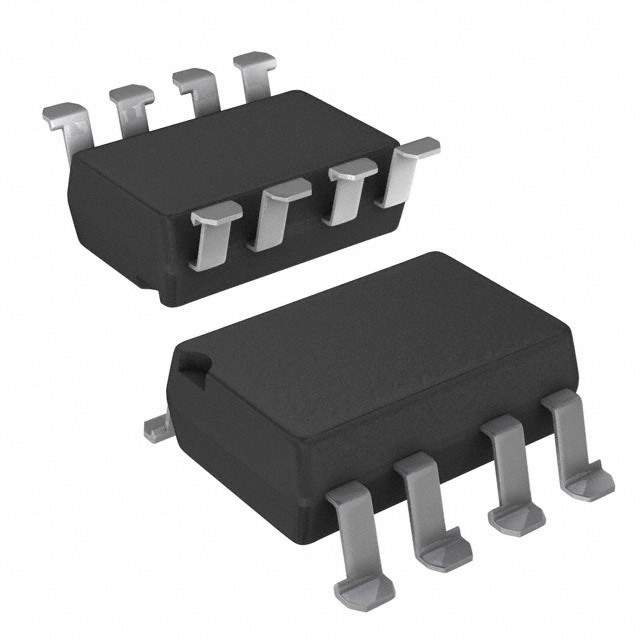

VO3120-X007T Real Image
Same model may have multiple batches, images only for reference.

VO3120-X007T

Part No VO3120-X007T
Manufacturer Vishay
Catalog Isolators - Gate Drivers
Description Optocoupler Drive Totem-Pole 1-CH 32V 1500V 8-Pin PDIP SMD T/R / OPTOISO 5.3KV GATE DRIVER 8SMD
Datasheet
VO3120-X007T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Active
Technology Optical Coupling
Number of Channels 1
Isolation Voltage 5300Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Propagation Delay tpLH / tpHL (Max) 400ns, 400ns
Pulse Width Distortion (Max) 200ns
Rise and Fall Time 100ns, 100ns
Current - Output High, Low 2.5A, 2.5A
Current - Peak Output 2.5A
Forward Voltage 1.6V (Max)
Continuous forward current- Max 25mA
Supply Voltage - Operating 15 V to 32 V
Temperature Range - Operating -40°C to 110°C
Mounting SMD (SMT)
Case / Package 8-SMD
Approvals cUR, UR
Win Source Part Number 057312-VO3120-X007T
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name VO3120
Introduction Date May 26, 2009
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VO3120-X007T CAD Model

Description

The VO3120-X007T is a high-quality optical coupling electronic component manufactured by Vishay.

  • Common Mode Transient Immunity: 25kV/μs
  • Propagation Delay tpLH/tpHL (Max): 400ns, 400ns
  • Isolation Voltage: 5300Vrms
  • Current Peak Output: 2.5A
  • Application: Isolators
  • Popularity: High
  • Supply and Demand Status: Limited
