Same model may have multiple batches, images only for reference.

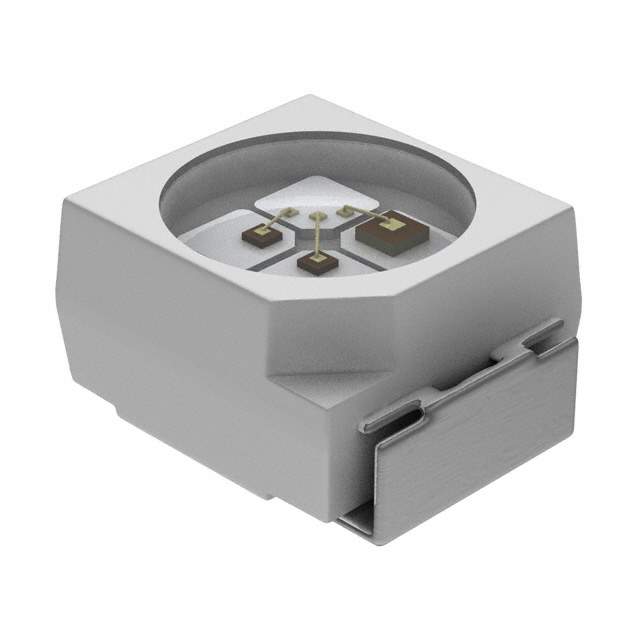

VLMH3100-GS18 Real Image
Same model may have multiple batches, images only for reference.

VLMH3100-GS18

Part No VLMH3100-GS18
Manufacturer Vishay
Catalog LED Indication - Discrete
Description Standard SMD LED PLCC-2
Datasheet
VLMH3100-GS18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay Semiconductor Opto Division
Series VLM.3
Packaging Reel - TR
Color Amber
Lens Transparency Clear
Millicandela Rating 10mcd
Lens Style/Size Round with Flat Top, 2.40mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 10mA
Viewing Angle 120°
Mounting SMD
Wavelength - Dominant 618.5nm
Wavelength - Peak 635nm
Package 2-SMD, J-Lead
Manufacturer Package 2-PLCC
Size 3.00mm L x 2.80mm W
Height (Maximum) 1.85mm
Win Source Part Number 1279384-VLMH3100-GS18
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Balance
Family Name VLMH3100
Introduction Date December 06, 2005
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian VLMH3100-GS18 CAD Model

Description

The VLMH3100-GS18 is an amber-colored LED manufactured by Vishay Semiconductor Opto Division.

  • Series: VLM.3 series
  • Package: 2-SMD, J-Lead
  • Lens Style and Size: Round with a flat top and 2.40mm respectively
  • Viewing Angle: 120 degrees
  • Millicandela Rating: 10mcd
  • Dominant Wavelength: 618.5nm
  • Peak Wavelength: 635nm
  • Forward Voltage: 2V
  • Current Test: 10mA
  • Package Size: 3.00mm L x 2.80mm W
  • Application: Ideal for optoelectronic applications
  • Packaging: Available in reel packaging
  • Height: 1.85mm
  • Alternative Part: VLMH3100-GS08
  • Estimated EOL Date: 2023
  • Popularity: Medium popularity in the market
