Same model may have multiple batches, images only for reference.

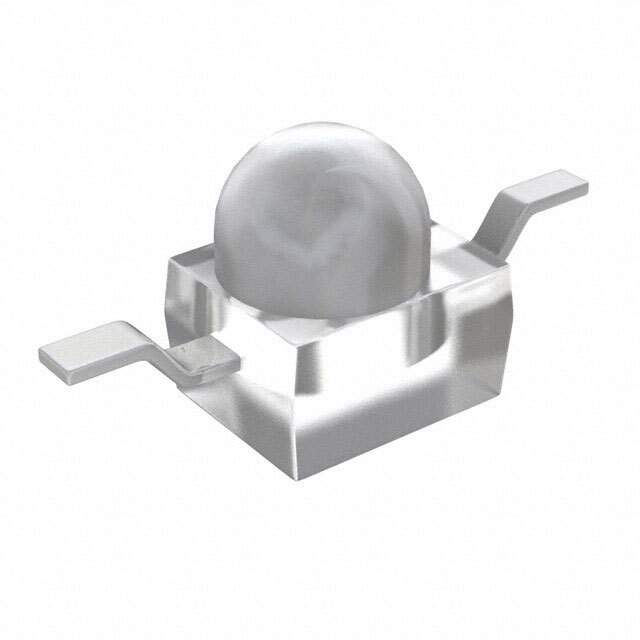

VLDS1235R Real Image
Same model may have multiple batches, images only for reference.

VLDS1235R

Part No VLDS1235R
Manufacturer Vishay
Catalog LED Indication - Discrete
Description LED RED CLEAR 2SMD BOTTOM ENTRY / Red 630nm LED Indication - Discrete 2.2V 2-SMD, Z-Bend
Datasheet
VLDS1235R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Vishay Semiconductor Opto Division
Series VLD.1235
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 11000mcd
Lens Style Round with Domed Top
Lens Size 1.80mm Dia
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 50mA
Viewing Angle 11°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 630nm
Wavelength - Peak 639nm
Package / Case 2-SMD, Z-Bend
Supplier Device Package 2-SMD
Size / Dimension 2.30mm L x 2.30mm W
Height (Max) 2.97mm
Base Product Number VLDS1235
Standard Package 6,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1349531-VLDS1235R
Ultra Librarian 3D Model Ultra Librarian VLDS1235R CAD Model

Description

The VLD.1235 series red LED indication is a product of Vishay Semiconductor Opto Division.

  • Millicandela Rating: 11000mcd
  • Viewing Angle: 11°
  • Wavelength-Dominant: 630nm
  • Wavelength-Peak: 639nm
  • Package: 2-SMD, Z-Bend
  • Size/Dimension: 2.30mm L x 2.30mm W
  • Height: 2.97mm
  • Lens Style: round with domed top
  • Lens Size: 1.80mm Dia
  • ECCN: EAR99
  • MSL Level: 2A (4 weeks)
  • HTSUS: 8541.41.0000
  • Voltage-Forward (Vf) (typ): 2.2V
