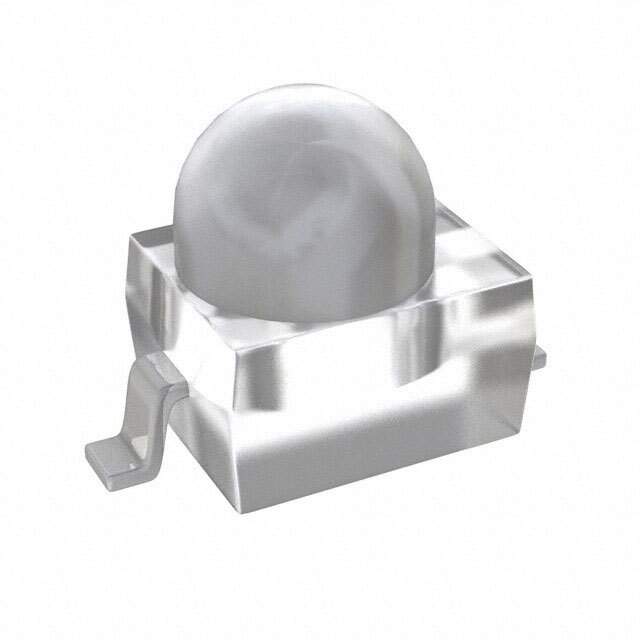

VLDS1235G Real Image
Same model may have multiple batches, images only for reference.

VLDS1235G

Part No VLDS1235G
Manufacturer Vishay
Catalog LED Indication - Discrete
Description LED RED CLEAR 2SMD / Red 630nm LED Indication - Discrete 2.2V 2-SMD, Gull Wing
Datasheet
VLDS1235G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Manufacturer Vishay Semiconductor Opto Division
Packaging Reel - TR
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 11000mcd
Lens Style Round with Domed Top
Lens Size 1.80mm Dia
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 50mA
Viewing Angle 11°
Mounting Surface Mount
Wavelength - Dominant 630nm
Wavelength - Peak 639nm
Case / Package 2-SMD, Gull Wing
Supplier Device Package 2-SMD
Size / Dimension 2.30mm L x 2.30mm W
Height (Max) 2.97mm
Base Product Number VLDS1235
RoHS Status ROHS3 Compliant
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number VLDS1235GTR,VLDS1235GDKR,VLDS1235GCT
Standard Package 6,000
Win Source Part Number 1331912-VLDS1235G
Ultra Librarian 3D Model Ultra Librarian VLDS1235G CAD Model

Description

The Vishay Semiconductor Opto Division VLDS1235G is a surface mount LED indication discrete with a standard package of 6,000.

  • Manufacturer: Vishay Semiconductor Opto Division
  • Mounting: Surface Mount
  • Standard Package: 6,000
  • Viewing Angle: 11°
  • Millicandela Rating: 11000mcd
  • Lens Style: Round with a Domed Top
  • Lens Size: 1.80mm Dia
  • LED Color: Red
  • Lens Transparency: Clear
  • Voltage-Forward (Vf) (Typ): 2.2V
  • Current-Test: 50mA
  • Wavelength-Dominant: 630nm
  • Wavelength-Peak: 639nm
  • Height (max): 2.97mm
  • Supplier Device Package: 2-SMD
  • Case/Package: 2-SMD, gull-wing
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
